Description
Features:
1. Use the integrated motor shaft design, more effective protection of the motor shaft
2. Use the new paddle seat design, more stable performance, easier to assemble and disassemble
3. Use a 0.2mm core, lower load temperature, higher efficiency
4. This motors are universal, do not have the CW and CCW difference.

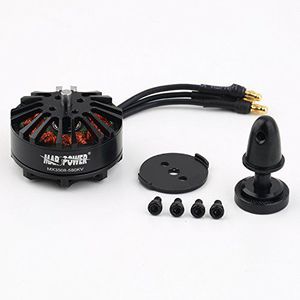

Model: MX3508
Color: Black
Motor KV value: 580KV
Motor diameter: 42mm
Motor length (without shaft): 24mm
Stator diameter: 35mm
Stator Length: 8mm
Shaft: 4mm
Weight: 90g
Size: 42 x 42mm x 28mm
Battery: 3-6 Cell batteries
No-load current: 0.3A
Top mounting holes: 12 x 12mm
Bottom mounting hole: 25 x 25mm
Applicable aircraft type: F450 F550 F500 FY650 FY680 and other 1 axis aircraft models
Propeller: APC12*3.8
Input voltage: 11.1~22.2
Package Including
1 * Brushless motors1 * Propeller adapters4 * Screws
