Description
The BMS is used for 3.2V / 3.7V lifepo4 battery without balancing function
Features:
1) high-accuracy voltage detection circuit.
2) terminal of the charger using high voltage device.
3) Built-in three-stage over-current detection circuit (over-current 1, over-current 2, load short circuit).
4) MOS transistor can control the battery charge and discharge.
Specification FOR 3.2V
Over charge voltage: 3.75V±0.25V
Over charge release voltage:3.45V±0.25V
Over discharge voltage:2.1V±0.05V
Maximal continuous charging/discharge current: 16A
Maximal Discharging current: 34A
Charge voltage : 3.7V
Size: L45*W16*T3.5mm
Weight: 19g
Specification FOR 3.7V
Over charge voltage range: 4.25V±0.25V
Over charge release voltage range:4.2V±0.25V
Over discharge voltage range:2.45V±0.05V
Maximal continuous charging/discharge current: 12A
Maximal Discharging current: 15A
Charge voltage : 4.2V
Size: L45*W16*T3.5mm
Weight: 19g

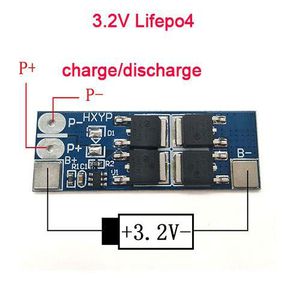

Wire connection:
BMS solder instruction:
B + connected battery positive.
B- connected battery negative .
P + connection charge / discharge positive.
P- connection charge / discharge negative
Notice:
1) Please note that the input and output voltage, and load current conditions for power protection board does not exceed the electrical parameters of the allowable power consumption.
2) special attention to the load current can not work long hours between maximum continuous operating current and over-current protection current.
3) When connecting the battery ,it may not discharge. In this case, connect the charger can be restored to normal working condition.
4) Although the BMS built-in electrostatic protection circuit, but please do not hand touch when BMS in the working condition, so as to avoid damage from static electricity protec
Features:
1) high-accuracy voltage detection circuit.
2) terminal of the charger using high voltage device.
3) Built-in three-stage over-current detection circuit (over-current 1, over-current 2, load short circuit).
4) MOS transistor can control the battery charge and discharge.
Specification FOR 3.2V
Over charge voltage: 3.75V±0.25V
Over charge release voltage:3.45V±0.25V
Over discharge voltage:2.1V±0.05V
Maximal continuous charging/discharge current: 16A
Maximal Discharging current: 34A
Charge voltage : 3.7V
Size: L45*W16*T3.5mm
Weight: 19g
Specification FOR 3.7V
Over charge voltage range: 4.25V±0.25V
Over charge release voltage range:4.2V±0.25V
Over discharge voltage range:2.45V±0.05V
Maximal continuous charging/discharge current: 12A
Maximal Discharging current: 15A
Charge voltage : 4.2V
Size: L45*W16*T3.5mm
Weight: 19g
Wire connection:
BMS solder instruction:
B + connected battery positive.
B- connected battery negative .
P + connection charge / discharge positive.
P- connection charge / discharge negative
Notice:
1) Please note that the input and output voltage, and load current conditions for power protection board does not exceed the electrical parameters of the allowable power consumption.
2) special attention to the load current can not work long hours between maximum continuous operating current and over-current protection current.
3) When connecting the battery ,it may not discharge. In this case, connect the charger can be restored to normal working condition.
4) Although the BMS built-in electrostatic protection circuit, but please do not hand touch when BMS in the working condition, so as to avoid damage from static electricity protec
Batcus 1S 16A 3.7v li-ion 3.2v lifepo4 BMS 18650 BMS PCM Battery Protection Board BMS pcm for 1s Battery Cell Pack - (Color: 3.2V Blue)
Current Price
$10.39
Average
$10.39
Min Price
$10.39
Max Price
$10.39
Price dynamics
0%
Description
The BMS is used for 3.2V / 3.7V lifepo4 battery without balancing function
Features:
1) high-accuracy voltage detection circuit.
2) terminal of the charger using high voltage device.
3) Built-in three-stage over-current detection circuit (over-current 1, over-current 2, load short circuit).
4) MOS transistor can control the battery charge and discharge.
Specification FOR 3.2V
Over charge voltage: 3.75V±0.25V
Over charge release voltage:3.45V±0.25V
Over discharge voltage:2.1V±0.05V
Maximal continuous charging/discharge current: 16A
Maximal Discharging current: 34A
Charge voltage : 3.7V
Size: L45*W16*T3.5mm
Weight: 19g
Specification FOR 3.7V
Over charge voltage range: 4.25V±0.25V
Over charge release voltage range:4.2V±0.25V
Over discharge voltage range:2.45V±0.05V
Maximal continuous charging/discharge current: 12A
Maximal Discharging current: 15A
Charge voltage : 4.2V
Size: L45*W16*T3.5mm
Weight: 19g
Wire connection:
BMS solder instruction:
B + connected battery positive.
B- connected battery negative .
P + connection charge / discharge positive.
P- connection charge / discharge negative
Notice:
1) Please note that the input and output voltage, and load current conditions for power protection board does not exceed the electrical parameters of the allowable power consumption.
2) special attention to the load current can not work long hours between maximum continuous operating current and over-current protection current.
3) When connecting the battery ,it may not discharge. In this case, connect the charger can be restored to normal working condition.
4) Although the BMS built-in electrostatic protection circuit, but please do not hand touch when BMS in the working condition, so as to avoid damage from static electricity protec
Features:
1) high-accuracy voltage detection circuit.
2) terminal of the charger using high voltage device.
3) Built-in three-stage over-current detection circuit (over-current 1, over-current 2, load short circuit).
4) MOS transistor can control the battery charge and discharge.
Specification FOR 3.2V
Over charge voltage: 3.75V±0.25V
Over charge release voltage:3.45V±0.25V
Over discharge voltage:2.1V±0.05V
Maximal continuous charging/discharge current: 16A
Maximal Discharging current: 34A
Charge voltage : 3.7V
Size: L45*W16*T3.5mm
Weight: 19g
Specification FOR 3.7V
Over charge voltage range: 4.25V±0.25V
Over charge release voltage range:4.2V±0.25V
Over discharge voltage range:2.45V±0.05V
Maximal continuous charging/discharge current: 12A
Maximal Discharging current: 15A
Charge voltage : 4.2V
Size: L45*W16*T3.5mm
Weight: 19g
Wire connection:
BMS solder instruction:
B + connected battery positive.
B- connected battery negative .
P + connection charge / discharge positive.
P- connection charge / discharge negative
Notice:
1) Please note that the input and output voltage, and load current conditions for power protection board does not exceed the electrical parameters of the allowable power consumption.
2) special attention to the load current can not work long hours between maximum continuous operating current and over-current protection current.
3) When connecting the battery ,it may not discharge. In this case, connect the charger can be restored to normal working condition.
4) Although the BMS built-in electrostatic protection circuit, but please do not hand touch when BMS in the working condition, so as to avoid damage from static electricity protec
