Description:

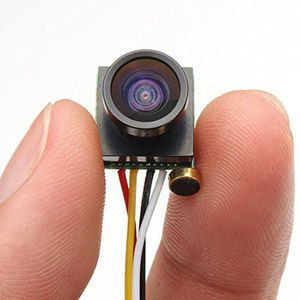

Name: 600TVL Wide Angle Lens Camera

Resolution: 1280 * 960

Resolution: 600TVL

Camera Dimensions: 12.5mm * 12.5mm * 17mm

Illumination: 0.5LUX

Format:PAL / NTSC

Power supply range: 3.7-5V 100mA

Audio Lens: Wide-angle 1.8mm (170 degree)

Image sensor:1/4 CMOS image sensor

Sensitive area: 3.5964mm x 2.7084mm

648 pixels (horizontal) * 488 (vertical) 648 (horizontal) * 488 (vertical)

Scanning Frequency Horizontal: 15.625KHz

Vertical: 50Hz

level: 15.7343KHz

Vertical: 60Hz

Electronic Shutter 1 / 50-1 / 80000 (sec) 1 / 60-1 / 80000 (sec)

Standard Lens :1.8 mm

Specifications PCB: 20mm*20mm

Package content:

1 *600TVL Wide Angle Lens Camera

Note: The light socket and the different screens can cause the color of the item in the image to be a little different from the actual one. The allowed measurement error is +/- 1-3 cm.
