Description

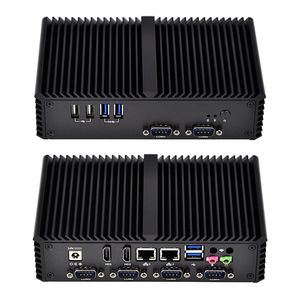

6 COM QOTOM-Q330P Series MINI PC Datasheet:
Dimension:187*111*50mm(L*H*W)
Packaging dimension:270*230*90mm
Weight:1.1Kg
Power Consumption:15W
Onboard CPU:Intel Core i3-4005U Processor 3M Cache, 1.70 GHz
Memory:Support DDR3L 1333/1600 MHz,1.35V, 1 x DDR3 DIMM Memory Slot ,Max. Supports up to 8GB Memory
Hard Disk:support MSATA SSD and 2.5 inch SATA HDD
Onboard VGA:Intel HD Graphics 4400
Onboard LAN:2 * Intel I211-AT- 10/100/1000 Controller
Audio Solution:Realtek ALC662 6-Channel HD Audio
Front-Panel Connectors:
power on/off button
HDD LED,Power LED
2 x USB 2.0 Ports
2 x USB 3.0 Ports
2 x COM Ports
Internal Connectors:
1 x Minipcie port (for mSATA SSD)
1 x Minipcie port (for WIFI/BLUETOOTH/3G/4G Module)
1 x DDR3 DIMM Memory Slot
1 x SATA Port
1 x SATA power connector
1 x Automatically boot jumper
1 x VGA header
1 x GPIO header (Optional)
1 x SIM card Slot (Optional)
Back-Panel Connectors:
1 xDV 12V DC input
2 x HD Video Connectors
2 x Intel RJ-45 Ports
2 x USB 3.0 Ports
1 x Speak Out Connector
1 x Mic In Connector
1 x VGA port(optional, COM 3 can be changed to VGA )
4 x COM port( COM 2 can be changed to RS485)
Operating System:Support Windows 7 / Windows 8 / 10 / Linux/Pfsense .etc
It can act as a host, applying to home, office, library, hospital, restaurant, bank and almost of where need a computer.
Warranty:
1.For all the mini pcs you bought from us, we provide a full one-year warranty.
2.We assure you that all the mini pc and accessories have been tested before delivery.
3.If the products do not work well, contact us, pls! We will try to figure out workable solutions with our professional team.
Best Media Center Pc Q330P Core I3-4005U Processor,1.7Ghz 8Gb Ddr3 Ram 32Gb Ssd WiFi, 2 LAN,2 Hd Video,6 Com,6 USB,Support Windows Os/Linux
Price is below average
Current Price
$239
Average
$262.07
Min Price
$239
Max Price
$280
Price dynamics
9%
Description
6 COM QOTOM-Q330P Series MINI PC Datasheet:
Dimension:187*111*50mm(L*H*W)
Packaging dimension:270*230*90mm
Weight:1.1Kg
Power Consumption:15W
Onboard CPU:Intel Core i3-4005U Processor 3M Cache, 1.70 GHz
Memory:Support DDR3L 1333/1600 MHz,1.35V, 1 x DDR3 DIMM Memory Slot ,Max. Supports up to 8GB Memory
Hard Disk:support MSATA SSD and 2.5 inch SATA HDD
Onboard VGA:Intel HD Graphics 4400
Onboard LAN:2 * Intel I211-AT- 10/100/1000 Controller
Audio Solution:Realtek ALC662 6-Channel HD Audio
Front-Panel Connectors:
power on/off button
HDD LED,Power LED
2 x USB 2.0 Ports
2 x USB 3.0 Ports
2 x COM Ports
Internal Connectors:
1 x Minipcie port (for mSATA SSD)
1 x Minipcie port (for WIFI/BLUETOOTH/3G/4G Module)
1 x DDR3 DIMM Memory Slot
1 x SATA Port
1 x SATA power connector
1 x Automatically boot jumper
1 x VGA header
1 x GPIO header (Optional)
1 x SIM card Slot (Optional)
Back-Panel Connectors:
1 xDV 12V DC input
2 x HD Video Connectors
2 x Intel RJ-45 Ports
2 x USB 3.0 Ports
1 x Speak Out Connector
1 x Mic In Connector
1 x VGA port(optional, COM 3 can be changed to VGA )
4 x COM port( COM 2 can be changed to RS485)
Operating System:Support Windows 7 / Windows 8 / 10 / Linux/Pfsense .etc
It can act as a host, applying to home, office, library, hospital, restaurant, bank and almost of where need a computer.
Warranty:
1.For all the mini pcs you bought from us, we provide a full one-year warranty.
2.We assure you that all the mini pc and accessories have been tested before delivery.
3.If the products do not work well, contact us, pls! We will try to figure out workable solutions with our professional team.
