Description

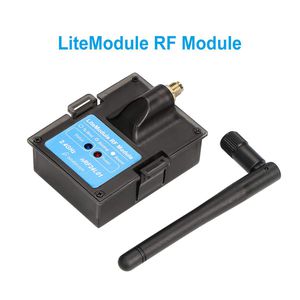

BETAFPV LiteModule RF Module Multiprotocol TX Module for Toy Quadcopters Bayang Protocol for Betafpv Lite FC Beta65s lite Whoop Drone
SPECIFICATION
Item: LiteModule RF Module
Signal frequency: 2400-2483.5Mhz
Controllable range: > 300m
Input voltage: 6V-13.5V
Supported radio transmitter: Frsky X9D/X9D Plus/X12S, Flysky TH9X, Turnigy 9XR/9XR PRO
Supported channel order: AETR
Supported toy: Bayang protocol
Recommend match:
Beta65s Lite whoop drone: www.amazon.com/dp/ B07CV8WVZ2
Brushed Lite FC: www.amazon.com/dp/B07BBN1S62
BINDING PROCEDURE
Here use the Frsky Taranis X9D Plus for example.
1. Creat a model in OpenTX using external module in PPM mode, 12 channels and AETR sequence order.
2. Turn off Frsky Taranis X9D Plus.
3. Power up the drone. Wait for it in the binding status.
4. Power up. Hold BOTH sticks DOWN and to the LEFT for 3 seconds. The blue LED is flashing slow indicates that the module is in binding status. When bind successfully, the blue LED would be in solid on. Now you could control your drone.
*5. If you re-power your drone, like change the battery, you need to restart the LiteModule to re-do the binding procedure. Hold left stick DOWN and to the RIGHT, right stick DOWN and to the LEFT for 3 seconds to restart the LiteModule.
Note:
This Multiprotocol TX Module only supports remote control of AETR remote control channel order. Optimal system is Opentx/ER9X. But JR and TAER remote control channel order is not available now .
PACKAGE
1 * LiteModule RF Module (Bayang Protocol)
1 * Whip Antenna
