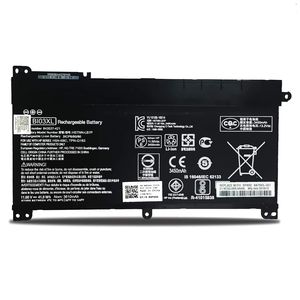

BI03XL Battery BI03XL ON03XL for HP Pavilion X360 13-U000 M3-U000:M3-U001DX U003DX U103DX U105DX 13-U100TU U118TU;HP Stream 14-AX000:14-ax010wm ax020wm ax030wm ax040wm 843537-541 844203-850 HSTNN-UB6W

WARNING: To avoid personal injury and damage to the product, use extreme care not to puncture, twist, or crack the battery. An internal puncture or rupture to the battery has the potential to cause a short which may result in a thermal event. Before you begin: Remove the base enclosure. Removal Disconnect the battery cable from its connector on the system board. Remove the battery cable from the routing channel on the speaker assembly. Remove the three 2.5 mm P1 Phillips-head screws that secure the battery to the top cover. Remove the two 6 mm P1 Phillips-head screws that secure the battery cable to the top cover. Lift the battery off of the alignment pins on the top cover and remove. Replacement NOTE: If you are installing a new battery, remove the battery cable from the old battery and install onto the new battery. Place the battery onto the alignment pins on the top cover. Replace th
