Description

The 9110 is a new type of power supply. Unlike conventional power supplies with fixed output ratings, the 9110 automatically recalculates voltage/current limits for each setting. The 9110 provides 100W output power in any volt/amp combination within the rated voltage (60V) and current (5A) limits. By providing greatly expanded choices of maximum power Volt/Amp combinations, users can cut down on the number of power supplies required and free up valuable bench space. Digitally controlled, mixed mode linear/switching DC power supply. 10mV/1mA resolution over the full range. Bright, easy to read display. Very compact and lightweight. Low ripple and noise. High reliability due to OCP, OVP and OTP protection. Output on/off control. Store and Recall 4 x 100 groups of preset Volt/Amp values. Output ratings voltage: 0 to 60V. Maximum power: 100W. Load regulation voltage: greater than or equal to 0.01 percent + 3mV. Line regulation voltage: greater than or equal to 0.01 percent + 3mV. Setting accuracy voltage: greater than or equal to 0.05 percent + 10mV. Display accuracy voltage: greater than or equal to 0.05 percent + 10mV. Ripple voltage: greater than or equal to 2.0 mVrms. Output ratings current: 0 to 5A. Load regulation current: greater than or equal to 0.01 percent + 3mA. Line regulation current: greater than or equal to 0.1 percent + 2mA. Setting accuracy current: greater than or equal to 0.2 percent + 2mA. Display accuracy current: greater than or equal to 0.1 percent + 2mA. Ripple current: greater than or equal to 5 mArms. State storage memory: 100 groups with 4 sets of volt/amp memories each. Measures 3-15/32" width by 6-57/64" height by 11-7/64" depth. 1 year warranty.

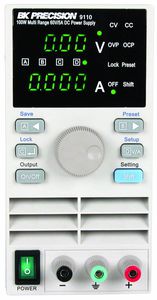

B&K Precision 9110 Multi Range DC Power Supply, 100W, 5A, 60V

Get price

Current Price

$297.17

Average

$290.26

Min Price

$200.39

Max Price

$338.4

Price dynamics

Description

According to the data, price will be lower in next two weeks, so not waste your money and track better price!

Product review & video

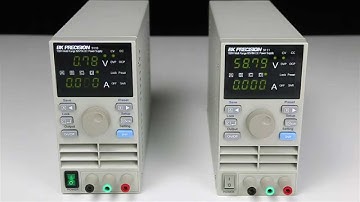

the 90-110 in 9111 are benchtop multi range DC power supplies offering up to 180 watts of output power they offer clean stable and precise output power with wider voltage and current ranges than standard single range power supplies the front panel features a bright LED display easy to use encoder knob and keypad with left and right cursor positioning buttons with the secondary save function enter button with a keypad lock secondary function volt amp toggle button with a secondary setup function output on/off button shift button with a display setting secondary function power switch and the output binding posts the rear panel has a temperature controlled low noise cooling fan the AC mains input terminal and the input mains voltage selector switch
