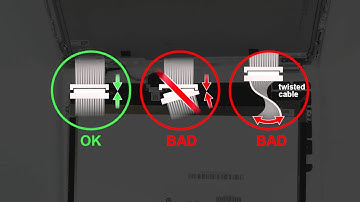

this is an Acer Chromebook 11 screen replacement guide for the replacement process we'll need the following tools small Phillips screwdriver small flat screwdriver before we start replacing the screen shut down the laptop and disconnect the power cord start removing the plastic bezel gently pull it away by the inner edge starting on its side then go around the perimeter and snapping the tabs try not to apply too much force but the bezel aside next step is to remove four Phillips screws holding the LCD panel in place remove two screws at the top and two screws at the bottom place the LCD screen on the keyboard unglue the clear tape securing the video connector using both hands gently disconnect the video cable discard the old LCD at this point we can install the new screen place it on the keyboard and reconnect the video cable secure it with a clear tape caution it is very important not
