Description
Polycarbonate molded enclosures meet NEMA specifications and ideal for PCB enclosures, junction boxes and other applications in the electrical and electronic industries. They come with molded external mounting brackets. Style 1 - Light gray polycarbonate body and cover. Body/Cover - UV stabilized , UL94-HB flammability rating, suggested service temperature -40C to 120C. Designed to IP66 of IEC 529 and NEMA 1, 2, 4, 4x, 12, and 13 specifications. UL Listed. Molded external mounting brackets eliminate the need for assembly of separate brackets. Cover attaching screws are outside the sealing area thus preventing ingress of moisture and dust. Most models have internal guide slots for mounting PCB assemblies vertically. Internal bosses allow mounting of PCBs horizontally or for connection of terminals etc, into threaded brass inserts (except pn-1320 and pn-1330). Cover screws are m-4 stainless steel, non-magnetic and fasten into threaded brass inserts. Gasket material: silicon sponge. External measures 8-47/64" length by 5-3/4" width by 2-15/16" height; internal measures 8-23/64" length by 5-3/8" width by 2-45/64" height.

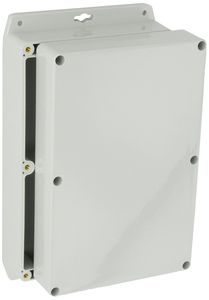

BUD Industries PN-1329-MB Polycarbonate NEMA 4X Box with Mounting Bracket, 8-47/64" Length x 5-3/4" Width x 2-15/16" Height, Light Gray Finish
Current Price
$29.2
Average
$22.37
Min Price
$11.48
Max Price
$29.2
Price dynamics
23%
Description
Polycarbonate molded enclosures meet NEMA specifications and ideal for PCB enclosures, junction boxes and other applications in the electrical and electronic industries. They come with molded external mounting brackets. Style 1 - Light gray polycarbonate body and cover. Body/Cover - UV stabilized , UL94-HB flammability rating, suggested service temperature -40C to 120C. Designed to IP66 of IEC 529 and NEMA 1, 2, 4, 4x, 12, and 13 specifications. UL Listed. Molded external mounting brackets eliminate the need for assembly of separate brackets. Cover attaching screws are outside the sealing area thus preventing ingress of moisture and dust. Most models have internal guide slots for mounting PCB assemblies vertically. Internal bosses allow mounting of PCBs horizontally or for connection of terminals etc, into threaded brass inserts (except pn-1320 and pn-1330). Cover screws are m-4 stainless steel, non-magnetic and fasten into threaded brass inserts. Gasket material: silicon sponge. External measures 8-47/64" length by 5-3/4" width by 2-15/16" height; internal measures 8-23/64" length by 5-3/8" width by 2-45/64" height.
