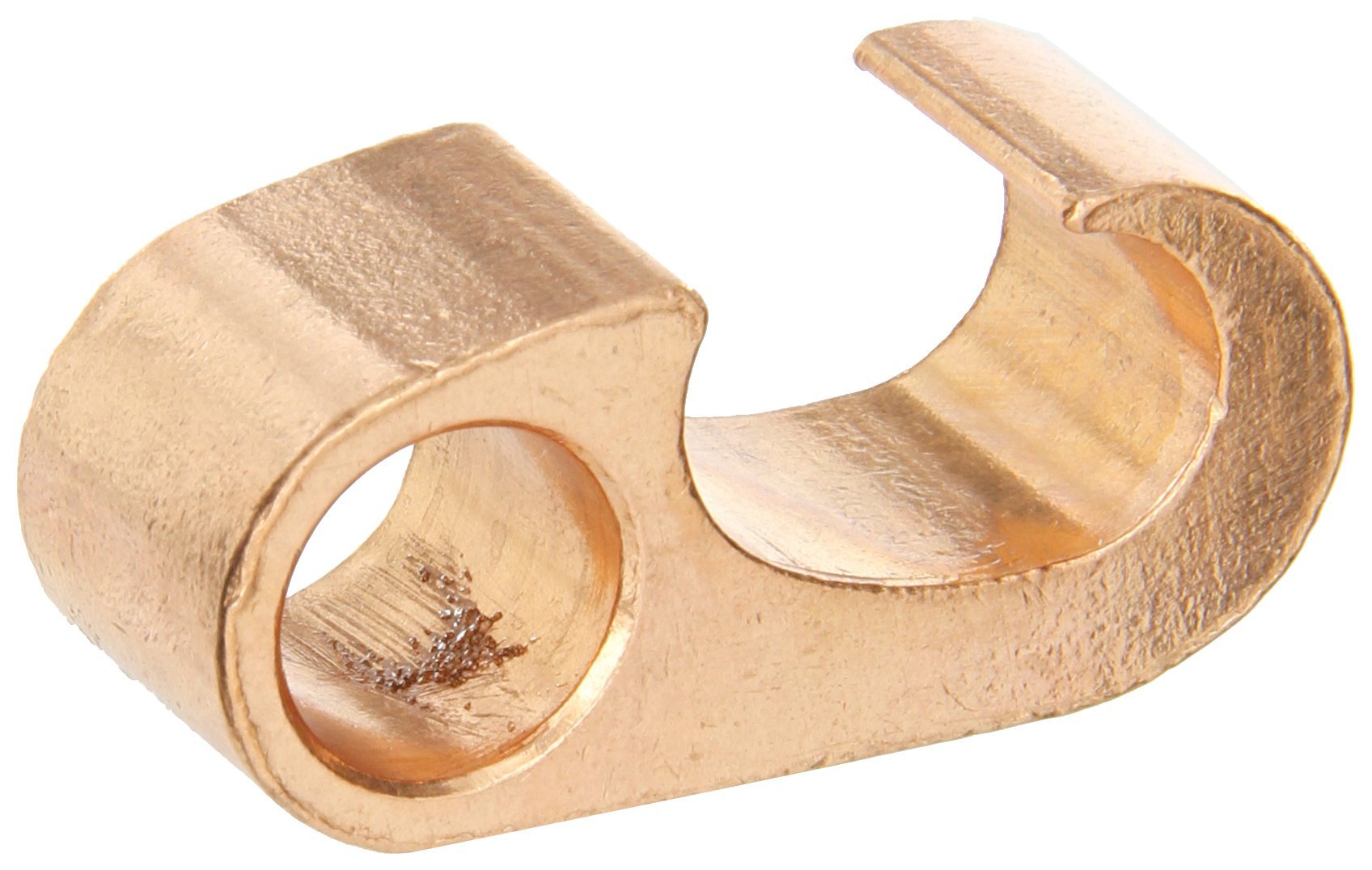

Burndy YGHP29C29 HYTAP Connector, 1/0 Str. - 250 kcmil, 1/2" - 5/8" Rod Run, 3/0 Str. - 250 kcmil Tap

the y GHC family of connectors are irreversible ground tab figure six connectors they accommodate all cable combinations from number six solid through 500 kcmil the C shaped opening permits placing two running tap cables into conductor groove today we'll be using the ygh C 29 C 29 au 997 die and the Pat 750li note these connectors can be installed using the Pat 750 Y 750 Y 35y 39y 45 or Y 46 and Pat 46 with recommended dies other Bernie tooling options may be available contact byrnedm for more information first determine the conductor size measure with the Byrne D wire Mike if needed choose appropriate connector of required size based on conductor size or rod size or both select and install the you 997 into the Pat 750li the die set information is stamped on the connector Center the connector in the die and insert cables into the connector as shown psycho crimping tool until an audible
