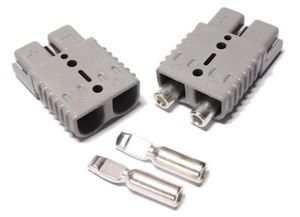

Redman CB175 amp Super Winch Battery connectors

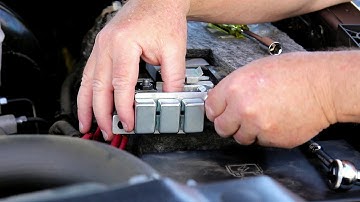

this video covers the superwinch circuit breaker installation at the positive battery terminal I've seen a couple of installations and one had the circuit breaker pointing north I didn't care for that so I came up with a different plan the vehicle here is a ram 1500 sport the factory clamp uses a metric carriage bolt however a standard 1/4 20 carriage bolt will work in its place I used one that's 3 inches long after removing the factory carriage bolt insert a three inch carriage bolt into the clamp and secure it with a barrel nut the barrel nut allows you to space the circuit breaker off the edge of the battery little I also used a couple of 1/4 washers for spacing one thing to note is that the circuit breaker assembly from superwinch is a little different from what I have here to mount it lower than the top of the battery I simply reverse the direction of the three circuit breakers kee
