camera
Image Sensor:1/3" CMOS
Effective Pixels:2592 (H) × 1944 (V) approx. 5 megapixels
Electronic Shutter:AUTO, AUTO, 1/25s ~ 1/100000s
Min. Illumination:0.1Lux@F1.2(AGC ON), 0Lux IR on
Day/Night:Auto/Color/(B/W)/Timing
WDR:Digital WDR
White Balance:Auto/Manual
AGC/BLC:Support
DNR:2D/3D DNR
Other:Motion Detection, Privacy Mask, Flip, Mirror
Encode
Video Standard:H.265/H.264
Video Resolution:Main Stream: 15fps@5MP(2592x1944),20fps@4MP(2592x1520),25fps@3MP/1080P/720P Sub Stream: VGA(640x480)/360P/QVGA@25fps, etc.
Video Bitrates:32Kbps - 8Mbps, VBR/CBR
Audio Standard:G.711-u/G.711-a
OSD Overlay:Title and Time overlay
IR Led
IR Led:4 pcs high power array IR Led
IR Distance:50M
Lens
Focal length:2.8 -12 mm AF lens
Zoom:4x optical zoom
Audio
Built in audio input
PTZ
Pan/Tilt Range: Pan: 0° ~ 250°; Tilt: -10° ~ 55°
Preset Point: 255
Manual Control Speed: Pan: 0.5° ~15° /s; Tilt: 0.5° ~15° /s
Guard Position: Support
Power-off Recovery: Support
Network Services
Protocol: HTTP/RTSP/FTP/NFS/SMTP/DHCP/NTP, etc.
P2P: Yes
Web: IE , Firefox esr, etc.
Media: CMS, Android, IOS
ONVIF: 2.6 compatible
General
Network Port: -RJ45, 100Mbps, POE
Power Supply: 12 VDC ± 10%
Power Consumption: < 12 W
Operating Temp: -20℃-(+60)℃, 10%-90%RH

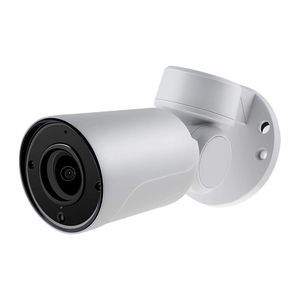

5MP PTZ HD IP PoE Security Camera VK-IMB95-ZA-4X, Built-in Audio Input, 2592x1944P, 2.8-12mm 4X Optical Zoom Autofocus, Night Vision 165ft, Support Onvif,IP65 Indoor Camera
camera
Image Sensor:1/3" CMOS
Effective Pixels:2592 (H) × 1944 (V) approx. 5 megapixels
Electronic Shutter:AUTO, AUTO, 1/25s ~ 1/100000s
Min. Illumination:0.1Lux@F1.2(AGC ON), 0Lux IR on
Day/Night:Auto/Color/(B/W)/Timing
WDR:Digital WDR
White Balance:Auto/Manual
AGC/BLC:Support
DNR:2D/3D DNR
Other:Motion Detection, Privacy Mask, Flip, Mirror
Encode
Video Standard:H.265/H.264
Video Resolution:Main Stream: 15fps@5MP(2592x1944),20fps@4MP(2592x1520),25fps@3MP/1080P/720P Sub Stream: VGA(640x480)/360P/QVGA@25fps, etc.
Video Bitrates:32Kbps - 8Mbps, VBR/CBR
Audio Standard:G.711-u/G.711-a
OSD Overlay:Title and Time overlay
IR Led
IR Led:4 pcs high power array IR Led
IR Distance:50M
Lens
Focal length:2.8 -12 mm AF lens
Zoom:4x optical zoom
Audio
Built in audio input
PTZ
Pan/Tilt Range: Pan: 0° ~ 250°; Tilt: -10° ~ 55°
Preset Point: 255
Manual Control Speed: Pan: 0.5° ~15° /s; Tilt: 0.5° ~15° /s
Guard Position: Support
Power-off Recovery: Support
Network Services
Protocol: HTTP/RTSP/FTP/NFS/SMTP/DHCP/NTP, etc.
P2P: Yes
Web: IE , Firefox esr, etc.
Media: CMS, Android, IOS
ONVIF: 2.6 compatible
General
Network Port: -RJ45, 100Mbps, POE
Power Supply: 12 VDC ± 10%
Power Consumption: < 12 W
Operating Temp: -20℃-(+60)℃, 10%-90%RH
