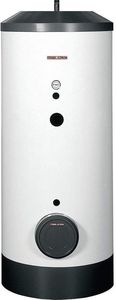

Stiebel Eltron 187873 Model SBB 300 Plus Domestic Dual Heat Exchanger Hot Water Tank for Solar, Geothermal or Hydronic Applications; 80.6 Gallon Storage Capacity, 150 psi/10 bar Working Pressure

All Stiebel Eltron SBB/SB-E series tanks are made in our factories in Germany and Slovakia. They can be used in residential or commercial installations as indirectly-fired domestic hot water storage tanks in conjunction with any type of boiler, geothermal, or solar hot water application. The vessels and heat exchangers in SBB/SB-E tanks are made from heavy gauge steel. All surfaces in contact with domestic hot water receive a thick ­porcelain enamel coating after shot-peening to clean the steel surface. Up to three inches of urethane foam insulation ensures that hot water stays hot, and standby heat loss is minimized.

• Heavy gauge steel with porcelain enamel coating
• Superb quality results in long service life
• Fitted with one or two large heat exchangers
• Sacrificial anode rod
• Up to 3" R-21 urethane foam insulation for low standby heat loss
• Large clean out port for ease of maintenance

• Storage capacity: 80.6 gal
• Upper heat exchanger volume: 1.9 gal
• Lower heat exchanger volume: 2.7 gal
• Working pressure: 150 psi/10 bar
• Tested to pressure: 217 psi/15 bar
• Max. pressure of boiler loop: 150 psi/10 bar
• Max. temp. upper loop: 266°F
• Max. temp. lower loop: 266°F
• Surface area of heat exchanger, upper: 1705 in2
• Surface area of heat exchanger, lower: 2325 in2
• Height with insulation: 72-3/4"
• Width with insulation: 27-9/16"
• Thickness of insulation: 3"
• Tank weight empty: 339 lb
• Tank weight full: 1051 lb
• Standby losses in 24 hours: 6500 BTU/1.9 kWh
