Features:
(1)The monitor has 6 image models. It can show single, dual, triple, quad image if you switchover AV button (when connecting with 4 cameras).
(2)The power cable of monitor has 6 wires, their definition as follows:
Red wire: 12-32V
Black wire: GND
Gray wire : trigger wire, control V1
Green wire : trigger wire, control V2
Blue wire : trigger wire, control V3
Brown wire : trigger wire, control V4
For example, if the Gray wire has 12 volt, then the monitor will only show one image of V1 camera. The rest can be done in the same manner other trigger wires. So please according to your requestion to connect those trigger wires to theleft light, right light and reversing light. Other, if you want the monitor always shows four image all the time, then those trigger wires need not connect to anything.
(3) Car camera
- Image Sensor: 1/3" CCD Sensor
- Effective pixel : PAL:500(H)×582(V)
- Horizontal Resolution: 480TV Lines

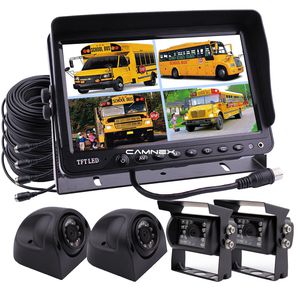

Package List:
-9" Monitor x 1
-Side Camera x 2
-Backup Camera x2
-4PIN 15m Cable x4
