Features:
- High Definition Digital Color LCD wide screen video monitor, 800 x 480 pixels.
- Built-in DVR recorder. DVR can re record on the same SD card in a loop. Maximum 64G.
- All video files are AVI format. Each camera has a separate video file.
- Built-in quad / Split screen, able to show 4 camera views at one time.
- AV1/AV2/AV3/AV4 with trigger wire, once trigger wire activated, image automatically switchover to corresponding camera.
- The monitor support 3-ways audio input(AV1, AV2 and AV3). It need cameras have audio output to AV1~AV3 channel. Audio will been recorded to SD card.
- Although monitor supports 5 cameras input, but DVR only records AV1, AV2, AV3 and AV4 images, it can not record AV5 image.
-The monitor do not built-in speaker as default, if you need it, please contact us.
- All DVR functions are set via the remote control.
- All cameras have one red (or white) wire on the 4pin connector, we send Mirror Image camera as default, if need Non-Mirror Image, please cut the wire.
How to Install this System:
The power cable of monitor has 6 wires, their definition as follows:
Red wire: 12-32V
Black wire: GND
Green wire: V5 trigger wire
Purple wire: V2 trigger wire
Gray wire: V3 trigger wire
White wire: V4 trigger wire
Please Kindly Note:
-The monitor included U-bracket as default, Not metal bracket.-The monitor without speaker and cameras also without audio.
-The item included a few 15m(49ft) cables.
-All camera are black shell.

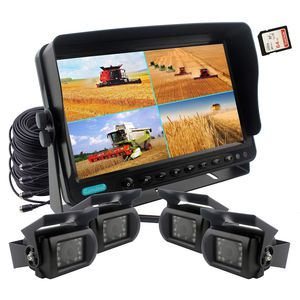

Package List:
- 7" DVR Monitor x 1
- Backup Camera x 4
- 4PIN 15m Cable x 4
SD Card Is Not Included
If want to know more our products, please visit our store, or search CAMSLEAD on Amazon.
CAMSLEAD Car Backup Camera Monitor System 7" Monitor Built-in DVR Recorder with Quad Split Screen Car Rear View Camera Kit for Truck Van Caravan Trailers Camper Bus RV Harvester
Features:
- High Definition Digital Color LCD wide screen video monitor, 800 x 480 pixels.
- Built-in DVR recorder. DVR can re record on the same SD card in a loop. Maximum 64G.
- All video files are AVI format. Each camera has a separate video file.
- Built-in quad / Split screen, able to show 4 camera views at one time.
- AV1/AV2/AV3/AV4 with trigger wire, once trigger wire activated, image automatically switchover to corresponding camera.
- The monitor support 3-ways audio input(AV1, AV2 and AV3). It need cameras have audio output to AV1~AV3 channel. Audio will been recorded to SD card.
- Although monitor supports 5 cameras input, but DVR only records AV1, AV2, AV3 and AV4 images, it can not record AV5 image.
-The monitor do not built-in speaker as default, if you need it, please contact us.
- All DVR functions are set via the remote control.
- All cameras have one red (or white) wire on the 4pin connector, we send Mirror Image camera as default, if need Non-Mirror Image, please cut the wire.
How to Install this System:
The power cable of monitor has 6 wires, their definition as follows:
Red wire: 12-32V
Black wire: GND
Green wire: V5 trigger wire
Purple wire: V2 trigger wire
Gray wire: V3 trigger wire
White wire: V4 trigger wire
Please Kindly Note:
-The monitor included U-bracket as default, Not metal bracket.-The monitor without speaker and cameras also without audio.
-The item included a few 15m(49ft) cables.
-All camera are black shell.
Package List:
- 7" DVR Monitor x 1
- Backup Camera x 4
- 4PIN 15m Cable x 4
SD Card Is Not Included
If want to know more our products, please visit our store, or search CAMSLEAD on Amazon.
