Description

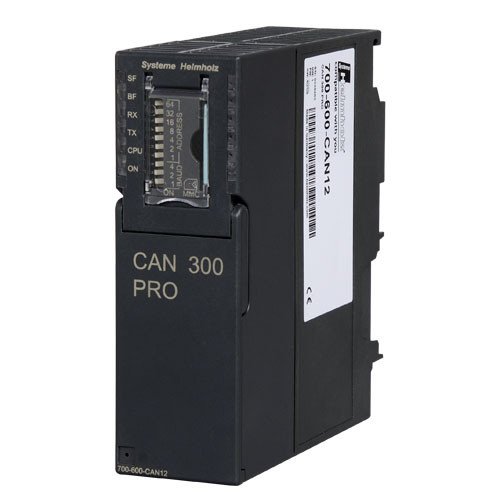

The CAN 300 PRO module of Systeme Helmholz GmbH for use in an S7-300* from Siemens permits connection of CAN stations with the programmable controller. The module can be slotted either in the central controller or in the expansion unit. The CAN 300 PRO module supports CAN 2.0A (11 Bit) and CAN 2.0B (29 Bit) frames with a freely selectable baud rate of 10 kbps to 1 Mbps. The CAN 300 PRO module can send & receive CAN frames in Layer 2 operating mode. The data of the CANopen slaves can be processed as a process image in CANopen Master operating mode in the PLC. Applications as a CANopen Slave is also possible. Application examples are provided for standard applications including motor control with CANopen. Data handling blocks for SAE J1939 protocol also available. The CAN 300 PRO module contains 16 freely settable timers. Each timer can trigger a freely programmable CAN telegram. It is easy to implement the synchronous protocols in common use in drive & servo systems using the CAN 300 PRO module. The DIP switch for setting the baud rate & the station address facilitate commissioning. An optional micro memory card stores the project so that the parameterization or the module is quickly replaced during servicing. 6 LEDs indicate the operating status of the module. A USB interface is available for diagnostics and parameterization tasks. Also works in the extended ambient temperature range of -25 ÁC to +60 ÁC.A USB cable is included. Note Information about the parameterization software CANParam and about the data handling blocks for the PLC you will find under CAN Software. When first used, data handling blocks are required for the PLC. Features Layer 2, 11 Bit and 29 Bit (CAN 2.0 A/B) . CANopen ¬ Master on the module. DIP switch for adress + baud rate. Micro Memory Card for saving a project (optional). USB Interface for parameterisation and diagnostics. Extensive CAN-Bus diagnostics. Can also be used as a CANopen ¬ slave. Extended ambient temperature range

CAN 300 PRO, Communication Module - 700-600-CAN12

Get price

Current Price

$1 243.04

Average

$1 243.04

Min Price

$1 243.04

Max Price

$1 243.04

Description

According to the data, price will be lower in next two weeks, so not waste your money and track better price!
