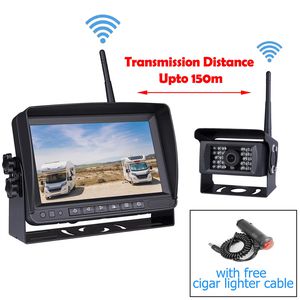

Monitor parameters

Built in digital wireless 802.11 Video receiver
Screen dimensions: 7inch (16:9)
Resolution: 800W×RGB×480H=1152000 Pixels
Reception: 150m open air
2CH video display simultaneously
System: PAL&NTSC
Video: 1CH wireless video reception
Power: DC12-40V
Consumption: 5W
Operate mode: key operation
Work temp.: -10℃~+65℃
Storage temp.:-25℃~+80℃
External dimensions: 180W×140H×20D(mm)
Full kit Weight: around 1650g

Camera parameters

Wireless camera built in802.11VIDEO Transmitter
Image Sensors: IR Color CMOS
Transmission: 150m open air
TV System:PAL / NTSC
waterproof rate:Ip69
Effective Pixels:684 x512pixels
Resolution:600TV lines
Minimum Illumination:0.5Lux / F1.2 0.2Lux / F1.2 (0Lux IR ON)
Pin Lens:f=2.5mm / F = 2.0
Lens Angle:120°; IR leds:28 Pcs
Vertical Sync. Frequency:50Hz / 60Hz
Video Output:1.0vp-p, 75Ohm
Power Supply:DC12V-40V
Current Consumption:≤300mA
Electronic Shutter:1/60 ~ 1/10,000 Seconds
Gamma Consumption:0.45
S/N Ratio:Better than 48Db
Scanning System:2:1Interlace
Operating Temperature:-20℃~70℃ ,RH95％MAX
Storage Temperature:-40℃~85℃ ,RH95％MAX

Package Includes

2 x Antenna
2 x Power Cable
1 x Sunshade
1 x Fixed Bracket
1 x Cigarette Lighter Plug Charger
1 x Allen Key
3 x Screw
1 x Installation Kits
1 x Bracket Sticker
1 x User Manual
