Description

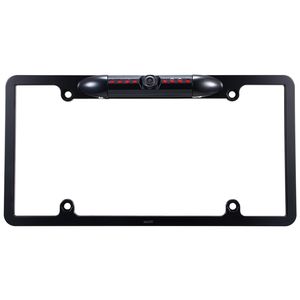

DALLUX C6002US License Plate Backup Camera
US license plate mount, ideal for all vehicles and easy to install. Aluminum Zinc material with IP68 waterproof & dustproof, high performance in all weather condition. Wide viewing angle (170 degrees) with clear mirror image. High Definition color CMOS image sensor. Excellent night vision performance with 8 IR LED and built-in scale lines display make back-in and parallel parking easy anywhere, anytime. 170 degrees up-and-down rotate camera with wide angle lens to ensure larger viewing area and minimize the chances of backup accidents.
Specification
Images Sensors: 1/4 CMOS(optional)
Signal System: NTSC
Horizontal Resolution(TV lines): 480 TV lines(enhanced)
Effective Pixels: 628*582 pixels
Lens viewing angle: 120(2.8mm)degrees
Unit Net Weight: 458g
IP Rating: IP68
Video Output: 1.0Vp-p,75 ohm
Current Consumption: 130-150 mA
Power Supply(DC): 12V(or DC12V/24V compatible)
Notes:
-This camera has a mirror image.
-This camera only supports NTSC video system, so please make sure your monitor supports NTSC video system.
-During installation, please connect the power cable of the backup camera to the harness wires that connect to the backup light on the tail light assembly. (Please note that the red wire end is positive, while the black one is negative). And connect the RCA output end to the car monitor.
Package includes
- 1 x Dallux Rear View Camera
- 1 x 3.5ft Power Cable
- 1 x 20ft RCA Video Cable
- 1 x User Manual
