Apply for:
- for Toyota Mark X 4Door MK1 2004~2009
- for Toyota Prius 2004~2010
- for Toyota Land Cruiser 120 Prado 2002~2009
- for Lexus GX470 J120 2002~2009
- for Lexus LX470 J100 1998~2007
Note:

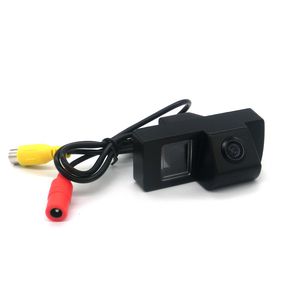

This camera is installed in the License Plate Light position, without damaging the body to install.
This product is a wired camera.
Camera size: 68mm* 31mm ( 2.67 inch* 1.22 inch )
Camera parameters:
170 degree HD camera
IP66 grade waterproof
Suitable for more than 90% of the world's cars
To solve the problem of parking, parking assist
Support NTSC system
Features:
Image sensor: Color 1/3" Sensor CCD
Support NTSC Video System
Resolution: 756(H)×720(V) Pixel
Horizontal resolution: 480TVL
Automatic White Balance
Automatic backlight compensation
Minimum illumination 0.2 lux only
RCA video output Vpp/75Ohm
Operating on 12V DC / ca. 200mA
Operating Temperature: -20°C~ 60°C, RH95% Max
Storage temperature: -30°C ~ 60°C, RH95% Max
Video cable length: 6m
Power supply cable length: 1m
Package Contents:
1 x Rear View Camera
1 x 6M Video Cable
1 x 1M Power Cable
1 x installation instruction
