Description

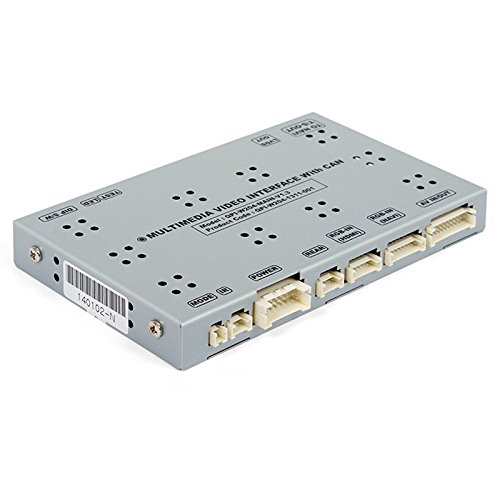

Car video interface serves to connect external video sources, such as navigation box, rear view camera, DVD player, TV tuner, etc. to the OEM car monitor. This video adapter is designed for Mercedes-Benz cars of 2012 and following MY, equipped with round connector head units. The video interface also offers active parking guidelines function.
Technical Specifications
Inputs
Analog RGB input
RGB input for smartphone connection adapter
CVBS input for rear view camera
A/V input x 3
Input for LCD connection
Outputs
Output for OEM LCD connection
Power
Input power: 8 V DC ~ 18 V DC
Max. consumed power: 5 W
Mode switching
by remote control
by remote switch button
by original button through CAN (only when CAN wires are connected)
it is possible to skip AV source by DIP S/W
Compatibility
A, B, C, CLA, E, GLK, ML Class from 2012 to 2014 MY with NTG 4.5
Package Content
Car video interface main module
Remote control unit with IR cable or OSD keypad
Sub-board
Cable set:
LVDS cable
LCD cable
RGB cable
A/V cable
Power cable (16 pin)
Cable with mode switch button
Touch out cable
Touch in cable
Reverse camera power cable
