Features:

-【Professional Certification】UT681 HDMI is a professional tester for testing HDMI cable (HDMI 1.2V/1.3V/1.4V/2.0V).

-【Quickly Scan and Test】Cable tester HDMI can quickly scan and test up to 19 wires and decide which one is short circuit, open circuit, or in wrong order.

-【Two Test Modes】HDMI cable tester tool supports two test modes, fast scan mode and full display mode.Three types of HD cables can be tested: a.Both ends are standard HDMI connectors (Type A - Type A); b.Both ends are HDMI Mini connectors (Type C - Type C); c.One end is HDMI connector, one end is HDMI Mini connector (Type A - Type C)

-【Battery low voltage test】when the battery voltage is lower than about 7.2V, the blue light flashes, prompting to replace the battery.

-【Auto shut down function】when no operation during the last 10 minutes, the instrument will automatically shut down.

Specifications:

Brand: UNI-T

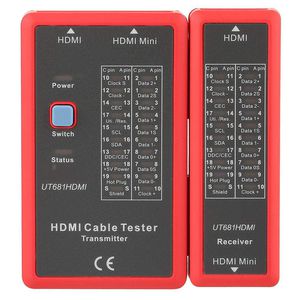

Model: UT681HDMI

Supported Connector: HDMI (type A); HDMI Mini (Type C)

Scan Test Mode: 20 LED (LED1~LED8, LED_G) scan test

Full Display Test Mode: 20 LED (LED1~LED8, LED_G) all light on

Continuity Test: Yes

Short Circuit Test: Yes

Crossover Test: Yes

Network Cable Test: Sheilding/Un-sheilding

Auto Power-off: After 10 minutes without operation

Power Supply: 9V battery

Low Voltage Test: Yes

Operating Temperature: 0℃~40℃

Storage Temperature: -10℃~50℃

Operating Humidity: 20%~80% RH

Storage Humidity: 10%~90% RH

Altitude: Less than 2000 meters

Weight: 175g(approx.)

Package Includes:

1 x Transmitter

1 x Receiver
