Tired of having the backup batteries in your Mitsubishi servo drives, PLCs or CNC controls die at the most inopportune time? Wish you could quickly replace the proprietary Lithium battery with readily available Alkaline AA batteries?

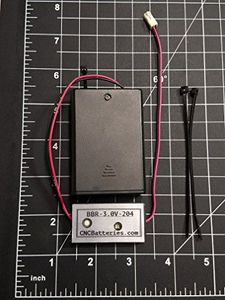

The BBR-3.6V-204 is designed to replace a Mitsubishi 3.0V Lithium Thionyl Chloride backup battery (pictured for reference) commonly used in Mitsubishi servo drives, PLCs and CNC controls. These Mitsubishi devices are often installed in CNC equipment such as Mazak Milling and Turning centers.

Features:

• Operates on readily available standard Alkaline AA batteries (ANSI-15A, IEC-LR6) (Included with purchase).
• Integrated battery state of charge display. Depressing the pushbutton on the regulator board illuminates a green or red LED to indicate that the AA batteries are either good or need to be replaced.
• Fully enclose battery holder keeps the batteries protected.
• Plug-and-play - Uses the same connector as the Mitsubishi/Mazak Relocation Sensor and other popular Mitsubishi PLCs and CNC controls..
• Reverse leakage protection to prevent charging circuits from damaging the batteries.
