Description
Color 2.4" LCD Module TFT024-3 Breakout Board sold separately Display Specification Display Format: 240 RGB X 320 Dots Display Connector: FPC FPC Connector: 50 Pin, 0.5mm Pitch, SMD Horizontal Type Top contact Operating Temperature: -20~+70 Storage Temperature: -30~+80 Sunlight Readable: No Mechanical Specification Diagonal Size: 2.4 inch Outline Dimension with FPC Folded: 42.72x59.26mm Active Area: 36.72x48.96mm Dot Pitch: 0.153x0.153mm Gross Weight: 0.04kg Electrical Specification IC Package: COG Controller: ILI9341 Interface: 8080 8-bit Parallel, 8080 9-bit Parallel, 8080 16-bit Parllel, 8080 18-bit Parallel, 3-wire SPI, 4-wire SPI, RGB Response time: 25ms Optical Specification LCD Type: TFT-LCD/Transmissive/Positive Viewing Angle Range: Left-70, Right-70, Up-60, Down-70 deg Colors: 65K/262K Contrast Ratio (Typ): 500:1 Brightness (Typ): 300 cd/m2 Datasheet

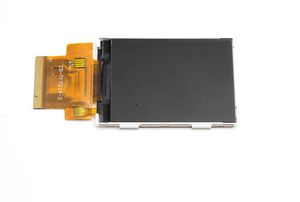

Color 2.4" LCD Module TFT024-3
Current Price
$5.99
Average
$5.99
Min Price
$5.99
Max Price
$5.99
Description
Color 2.4" LCD Module TFT024-3 Breakout Board sold separately Display Specification Display Format: 240 RGB X 320 Dots Display Connector: FPC FPC Connector: 50 Pin, 0.5mm Pitch, SMD Horizontal Type Top contact Operating Temperature: -20~+70 Storage Temperature: -30~+80 Sunlight Readable: No Mechanical Specification Diagonal Size: 2.4 inch Outline Dimension with FPC Folded: 42.72x59.26mm Active Area: 36.72x48.96mm Dot Pitch: 0.153x0.153mm Gross Weight: 0.04kg Electrical Specification IC Package: COG Controller: ILI9341 Interface: 8080 8-bit Parallel, 8080 9-bit Parallel, 8080 16-bit Parllel, 8080 18-bit Parallel, 3-wire SPI, 4-wire SPI, RGB Response time: 25ms Optical Specification LCD Type: TFT-LCD/Transmissive/Positive Viewing Angle Range: Left-70, Right-70, Up-60, Down-70 deg Colors: 65K/262K Contrast Ratio (Typ): 500:1 Brightness (Typ): 300 cd/m2 Datasheet
Price will be lower
in next 2 weeks
in next 2 weeks
According to the data, price will be lower in next two weeks, so not waste your money and track better price!
