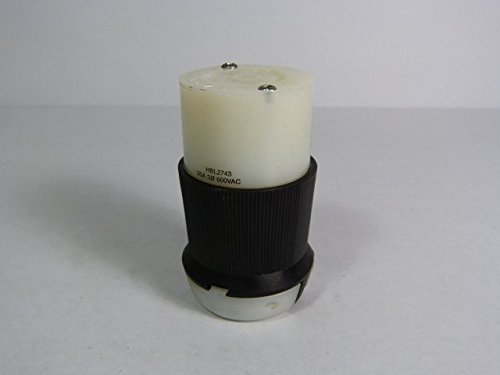

Connector Body, 30 A, L17-30

before wiring up any plug or connector make sure the power is off to the cable you will notice on the faceplate that it's stamped with the name of configuration amperage and voltage now taking a Phillips head screwdriver loosen the quick screws on the faceplate and remove the faceplate from the body housing next taking your Phillips head screwdriver loosen the two strain relief screws on your strain relief then take your cable feed it through the strain relief and the body housing now strip the cord jacket according to the diagram found on the instruction sheet you will want your leads to be roughly one and a half inches then remove the cord jacket your ground or your green wire will need to be cut to be approximately one inch long taking a pair of wire strippers cut the wire now you will want to strip all of your wires approximately 5/8 of an inch taking your wire strippers place it on
