Description

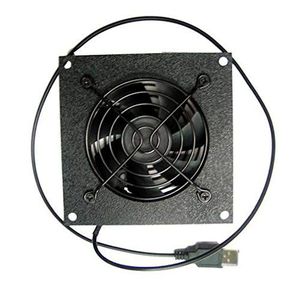

This 92mm USB version of our Cabcool is a great selection if you just want a no nonsense easy to install kit to keep your stuff cool.
To use this kit you will need access to a USB port, the fan will switch on when the device is powered.
It's been tested and will work with popular devices like Cable & Satellite Boxes as well as most common game consoles like the Nintendo Wii, Xbox 360, and Playstation 3.
Also it's a great addition to a closed computer cabinet so you can exhaust the hot air that is created by the computer whenever it is powered on.
The single 92mm fan mounting bracket included is 120 x 120 x 3mm
It can be mounted on any side of a cabinet, where room permits, by cutting a hole 96mm x 96mm in size
Insert completed cooler assembly in hole and attach to cabinet with appropriate screws.
Fan(s) can be installed to blow into or out of the cabinet depending on your needs.
Cooling Unit includes the following:
(1) Coolerguys 92x92x25mm USB Fan with Grill
(1) Black Acrylic Fan bracket (L)120mm x (H)120mm x (W)3mm
(2) Black 92mm Black Fan Grill/Guard
(8) Fan Screws to attach grill(s)
Pack - 4" Nylon Multi-Purpose Tie Black
(4) 1/2" black Cabinet screw(s)
PRODUCT SPECIFICATIONS:
Completed dimensions: 120 x 120 x ~32mm
Cut-out Dimensions: 96 x 96mm
FAN SPECIFICATIONS:
Dimensions: 92x92x25mm
Voltage: 5VDC
Startup Voltage: 3.5V
Operating Range: 3V-6.5VDC
Input current: .18 Amp Max
Storage temperature: -40 to +70 C
Fan Speed: 1500 +/- 10% RPM
Airflow: 23.5 CFM
Noise Level: 22.9 dBA
Corners: Open
Connector: USB w/24" Tail
Bearing Type: Dual Ball bearing
Life Hours: 40,000 hours
CERTIFICATION:
RoHS Compliant
To use this kit you will need access to a USB port, the fan will switch on when the device is powered.
It's been tested and will work with popular devices like Cable & Satellite Boxes as well as most common game consoles like the Nintendo Wii, Xbox 360, and Playstation 3.
Also it's a great addition to a closed computer cabinet so you can exhaust the hot air that is created by the computer whenever it is powered on.
The single 92mm fan mounting bracket included is 120 x 120 x 3mm
It can be mounted on any side of a cabinet, where room permits, by cutting a hole 96mm x 96mm in size
Insert completed cooler assembly in hole and attach to cabinet with appropriate screws.
Fan(s) can be installed to blow into or out of the cabinet depending on your needs.
Cooling Unit includes the following:
(1) Coolerguys 92x92x25mm USB Fan with Grill
(1) Black Acrylic Fan bracket (L)120mm x (H)120mm x (W)3mm
(2) Black 92mm Black Fan Grill/Guard
(8) Fan Screws to attach grill(s)
Pack - 4" Nylon Multi-Purpose Tie Black
(4) 1/2" black Cabinet screw(s)
PRODUCT SPECIFICATIONS:
Completed dimensions: 120 x 120 x ~32mm
Cut-out Dimensions: 96 x 96mm
FAN SPECIFICATIONS:
Dimensions: 92x92x25mm
Voltage: 5VDC
Startup Voltage: 3.5V
Operating Range: 3V-6.5VDC
Input current: .18 Amp Max
Storage temperature: -40 to +70 C
Fan Speed: 1500 +/- 10% RPM
Airflow: 23.5 CFM
Noise Level: 22.9 dBA
Corners: Open
Connector: USB w/24" Tail
Bearing Type: Dual Ball bearing
Life Hours: 40,000 hours
CERTIFICATION:
RoHS Compliant
Coolerguys USB Powered Cooling Fan Kits (Single 92mm)
Current Price
$19.95
Average
$19.95
Min Price
$19.95
Max Price
$19.95
Price dynamics
0%
Description
This 92mm USB version of our Cabcool is a great selection if you just want a no nonsense easy to install kit to keep your stuff cool.
To use this kit you will need access to a USB port, the fan will switch on when the device is powered.
It's been tested and will work with popular devices like Cable & Satellite Boxes as well as most common game consoles like the Nintendo Wii, Xbox 360, and Playstation 3.
Also it's a great addition to a closed computer cabinet so you can exhaust the hot air that is created by the computer whenever it is powered on.
The single 92mm fan mounting bracket included is 120 x 120 x 3mm
It can be mounted on any side of a cabinet, where room permits, by cutting a hole 96mm x 96mm in size
Insert completed cooler assembly in hole and attach to cabinet with appropriate screws.
Fan(s) can be installed to blow into or out of the cabinet depending on your needs.
Cooling Unit includes the following:
(1) Coolerguys 92x92x25mm USB Fan with Grill
(1) Black Acrylic Fan bracket (L)120mm x (H)120mm x (W)3mm
(2) Black 92mm Black Fan Grill/Guard
(8) Fan Screws to attach grill(s)
Pack - 4" Nylon Multi-Purpose Tie Black
(4) 1/2" black Cabinet screw(s)
PRODUCT SPECIFICATIONS:
Completed dimensions: 120 x 120 x ~32mm
Cut-out Dimensions: 96 x 96mm
FAN SPECIFICATIONS:
Dimensions: 92x92x25mm
Voltage: 5VDC
Startup Voltage: 3.5V
Operating Range: 3V-6.5VDC
Input current: .18 Amp Max
Storage temperature: -40 to +70 C
Fan Speed: 1500 +/- 10% RPM
Airflow: 23.5 CFM
Noise Level: 22.9 dBA
Corners: Open
Connector: USB w/24" Tail
Bearing Type: Dual Ball bearing
Life Hours: 40,000 hours
CERTIFICATION:
RoHS Compliant
To use this kit you will need access to a USB port, the fan will switch on when the device is powered.
It's been tested and will work with popular devices like Cable & Satellite Boxes as well as most common game consoles like the Nintendo Wii, Xbox 360, and Playstation 3.
Also it's a great addition to a closed computer cabinet so you can exhaust the hot air that is created by the computer whenever it is powered on.
The single 92mm fan mounting bracket included is 120 x 120 x 3mm
It can be mounted on any side of a cabinet, where room permits, by cutting a hole 96mm x 96mm in size
Insert completed cooler assembly in hole and attach to cabinet with appropriate screws.
Fan(s) can be installed to blow into or out of the cabinet depending on your needs.
Cooling Unit includes the following:
(1) Coolerguys 92x92x25mm USB Fan with Grill
(1) Black Acrylic Fan bracket (L)120mm x (H)120mm x (W)3mm
(2) Black 92mm Black Fan Grill/Guard
(8) Fan Screws to attach grill(s)
Pack - 4" Nylon Multi-Purpose Tie Black
(4) 1/2" black Cabinet screw(s)
PRODUCT SPECIFICATIONS:
Completed dimensions: 120 x 120 x ~32mm
Cut-out Dimensions: 96 x 96mm
FAN SPECIFICATIONS:
Dimensions: 92x92x25mm
Voltage: 5VDC
Startup Voltage: 3.5V
Operating Range: 3V-6.5VDC
Input current: .18 Amp Max
Storage temperature: -40 to +70 C
Fan Speed: 1500 +/- 10% RPM
Airflow: 23.5 CFM
Noise Level: 22.9 dBA
Corners: Open
Connector: USB w/24" Tail
Bearing Type: Dual Ball bearing
Life Hours: 40,000 hours
CERTIFICATION:
RoHS Compliant
Price will be lower
in next 2 weeks
in next 2 weeks
According to the data, price will be lower in next two weeks, so not waste your money and track better price!
Product review & video
hey color guys here I've got our single deluxe USB category kit just a single 120 million air fan with a built-in LED controller on the bracket purchase it comes assembled and plugs into the back of the controller there is a switch here to you can switch the fan on or you can switch it to thermal control comes with a 20 inch long USB power cord that you plug in the back of the controller and then you plug it into any USB power source turn the fan on or the patroller on right now it's going to give you a readout of the ambient temperature it's got a two-foot-long probe that you're going to place in your cabinet and it'll turn the fan on it right now I have it set so it will turn the fan on at 82 degrees if I can get that to go on there you go angles on I have it set to go off at eight degrees so should turn off very quickly oh this is a nice unit you can mount it on the inside of your ca
