Description
- Manufacturer: Crestron
- Model: CNRFGWA-418
- Wireless
- RF Receiver 418 MHz 1-way RF, crystal locked
- Device Compatibility Supports up to 256 WPR-48 remotes, or up to 16 ML-600 or MT-1000C remotes
- Range Up to 300 feet typical, subject to site-specific conditions and individual device capabilities [1]
- Minimum distance allowed between gateways is 50 feet
- Connectors
- NET (1) 4-pin 5mm detachable terminal block, Cresnet slave port;
- Connects to Cresnet control network
- ANTENNA (1) BNC female, connection for supplied antenna or optional high-performance antenna (CNANT sold separately);
- Impedance: 50 Ohms
- Controls & Indicators
- ID CODE (2) Rotary DIP Switches, for setting the Cresnet ID
- SIGNAL (1) Red LED, indicates reception of a valid RF signal
- I.D. SELECT (1) Red LED, indicates communication established with control system
- NET PWR (1) Green LED, indicates DC power supplied from Cresnet network
- Power Requirements
- Cresnet Power Usage 3 Watts (0.125 Amps @ 24 Volts DC)
- Wireless

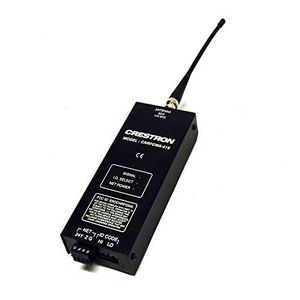

Crestron 418MHz 1-Way RF Gateway
Current Price
$189.99
Average
$189.99
Min Price
$189.99
Max Price
$189.99
Description
- Manufacturer: Crestron
- Model: CNRFGWA-418
- Wireless
- RF Receiver 418 MHz 1-way RF, crystal locked
- Device Compatibility Supports up to 256 WPR-48 remotes, or up to 16 ML-600 or MT-1000C remotes
- Range Up to 300 feet typical, subject to site-specific conditions and individual device capabilities [1]
- Minimum distance allowed between gateways is 50 feet
- Connectors
- NET (1) 4-pin 5mm detachable terminal block, Cresnet slave port;
- Connects to Cresnet control network
- ANTENNA (1) BNC female, connection for supplied antenna or optional high-performance antenna (CNANT sold separately);
- Impedance: 50 Ohms
- Controls & Indicators
- ID CODE (2) Rotary DIP Switches, for setting the Cresnet ID
- SIGNAL (1) Red LED, indicates reception of a valid RF signal
- I.D. SELECT (1) Red LED, indicates communication established with control system
- NET PWR (1) Green LED, indicates DC power supplied from Cresnet network
- Power Requirements
- Cresnet Power Usage 3 Watts (0.125 Amps @ 24 Volts DC)
- Wireless
