Current Loop - High Accuracy 4-20mA Signal Generator Two-wire Transducer Test

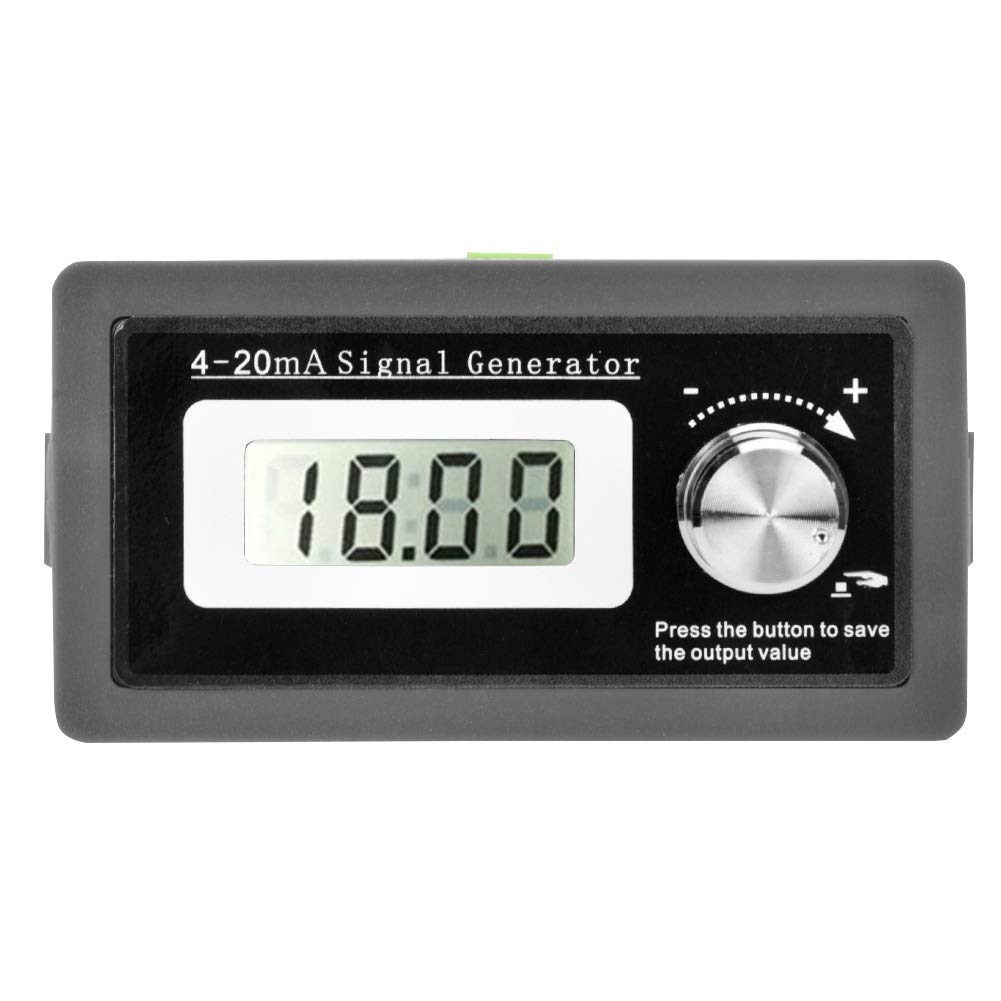

today we're gonna simulate a 4 to 20 mili-amp to wire current loop signal we're gonna use a 24 volt power supply to power our loop then we're going to use our sim al p2 to regulate it into a 4 to 20 milliamp signal and we'll put a basic multimeter capable of measuring a million signal and loop also when connecting your meter in the loop that is very important that you have the leads in the correct position and select the proper mode or it is highly possible that you will blow the fuse in your meter or do further damage to it in this case this meter has a 10 amp terminal but we see over here right along with voltage the knives that also says milliamps so this is the correct position and then we will want to either put it in the 200 milli amp or the 20 milli amp position we have wired up to 24 volt power supply and have connected a blue wire to the plus terminal and a blue wire for white
