Description
Technical Specification
Power supply voltage: DC 9-15V (12Vrecommended)
Operating current: Less than 3A
Frequency range: 65~ 90Mhz
Frequency step: 100kHz
Frequency stabilization method: PLL
Frequency stability: ± 10 ppm (-10 ° C to +60 ° C)
Frequency deviation: Less than ± 75kHz (100%)
Working method: Continuous
Clutter and Harmonic: Less than -60dB
SNR: More than 60dB
Stereo channels crosstalk: -50dB
Audio frequency response: 80 to 15000Hz
Audio distortion: Less than 2%
Modulation: 15%
Input level:-15dBV (adjustable)
RF output impedance: 50 Ohm
RF output power: 0.1W/0.5W (Power can be switched)
Reference range: 100m - 1Km (A barrier-free environment)
Unit dimensions: 147mm(L) * 88mm(W) * 38mm(H)
Packing list:
1. CZE - 05 b * 1
2. DC 12 v 2 a power adapter * 1
3. The audio line * 1
4. Manual * 1
5. Packing box * 1
Power supply voltage: DC 9-15V (12Vrecommended)
Operating current: Less than 3A
Frequency range: 65~ 90Mhz
Frequency step: 100kHz
Frequency stabilization method: PLL
Frequency stability: ± 10 ppm (-10 ° C to +60 ° C)
Frequency deviation: Less than ± 75kHz (100%)
Working method: Continuous
Clutter and Harmonic: Less than -60dB
SNR: More than 60dB
Stereo channels crosstalk: -50dB
Audio frequency response: 80 to 15000Hz
Audio distortion: Less than 2%
Modulation: 15%
Input level:-15dBV (adjustable)
RF output impedance: 50 Ohm
RF output power: 0.1W/0.5W (Power can be switched)
Reference range: 100m - 1Km (A barrier-free environment)
Unit dimensions: 147mm(L) * 88mm(W) * 38mm(H)
Packing list:
1. CZE - 05 b * 1
2. DC 12 v 2 a power adapter * 1
3. The audio line * 1
4. Manual * 1
5. Packing box * 1

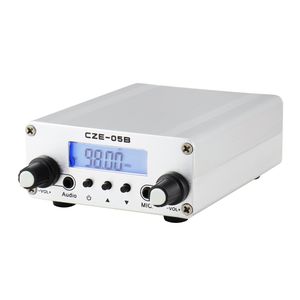

CZERF CZE-05B 0.5w 65~90MHz Long Range Dual Mode Stereo Broadcast Home Fm Transmitter with Antenna, Silver
