Description
Description:
cze-7c crust is made of high-quality aluminum, which also is the heating panel of power amplifier RD06HVF1, with blue backlight LCD to display five digits of frequency. Motherboard is applied with chip BH1415F, which is the new-generation integrated NC FM stereo radio chip by ROHM, built-in limiter and low pass filter circuit. Make sound more sweet. Control board is designed with high performance MCU STC series, its performance is better than AT89C2051. With microphone and audio input of the amplifier, adjustable input level. Transmitting power can switch between 1W and 7W.
(How to switch? -Press and hold the power switch button then plug in the power,
when the LCD display L or H, then release the power button.
By the buttons + and - to switch the transmitter power.).
Specification:
FM Transmitter Frequencies:87-108Mhz
Tuning Step: 100Khz/0.1Mhz
Power Supply:12V DC (The current load of power supply should over 2A)
Stability of Frequency: ±0ppm(-10℃~+50℃)
Frequency Response: 76 ~ 108Mhz
Signal to Noise Ratio: >70dB
Distortion: < 0.5%
Operation Time: True 24/7
Antenna Design:Metal telescoping antenna
Antenna Connector:TNC type
Output Impedance:50 ohm
RF output power: 1W/7W (Power can be switched)
WHne you are in the high Power the Output the power generally 5-7W
Audio Input Connector:3.5mm
Mic Input Connector:3.5mm
Antenna type: TNC telescopic antenna IS-01
Tuning Design:Stable PLL Technology
Transmission Signal:FM Stereo
Size:160mm*95mm*54mm
Package:
-CZH FM Transmitter *1
-Professional antenna *1
-Power supply *1
-Power cord *1
-Audio cable *1
-English manual *1
cze-7c crust is made of high-quality aluminum, which also is the heating panel of power amplifier RD06HVF1, with blue backlight LCD to display five digits of frequency. Motherboard is applied with chip BH1415F, which is the new-generation integrated NC FM stereo radio chip by ROHM, built-in limiter and low pass filter circuit. Make sound more sweet. Control board is designed with high performance MCU STC series, its performance is better than AT89C2051. With microphone and audio input of the amplifier, adjustable input level. Transmitting power can switch between 1W and 7W.
(How to switch? -Press and hold the power switch button then plug in the power,
when the LCD display L or H, then release the power button.
By the buttons + and - to switch the transmitter power.).
Specification:
FM Transmitter Frequencies:87-108Mhz
Tuning Step: 100Khz/0.1Mhz
Power Supply:12V DC (The current load of power supply should over 2A)
Stability of Frequency: ±0ppm(-10℃~+50℃)
Frequency Response: 76 ~ 108Mhz
Signal to Noise Ratio: >70dB
Distortion: < 0.5%
Operation Time: True 24/7
Antenna Design:Metal telescoping antenna
Antenna Connector:TNC type
Output Impedance:50 ohm
RF output power: 1W/7W (Power can be switched)
WHne you are in the high Power the Output the power generally 5-7W
Audio Input Connector:3.5mm
Mic Input Connector:3.5mm
Antenna type: TNC telescopic antenna IS-01
Tuning Design:Stable PLL Technology
Transmission Signal:FM Stereo
Size:160mm*95mm*54mm
Package:
-CZH FM Transmitter *1
-Professional antenna *1
-Power supply *1
-Power cord *1
-Audio cable *1
-English manual *1

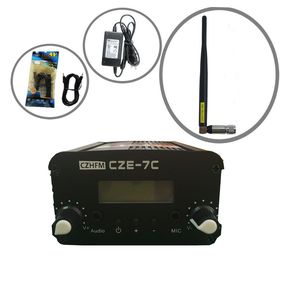

CZH CZE-7C FM Transmitter Mini Radio Stereo Station PLL LCD with Antenna Kit
Price is below average
Current Price
$65
Average
$65.46
Min Price
$58.99
Max Price
$95
Price dynamics
1%
Description
Description:
cze-7c crust is made of high-quality aluminum, which also is the heating panel of power amplifier RD06HVF1, with blue backlight LCD to display five digits of frequency. Motherboard is applied with chip BH1415F, which is the new-generation integrated NC FM stereo radio chip by ROHM, built-in limiter and low pass filter circuit. Make sound more sweet. Control board is designed with high performance MCU STC series, its performance is better than AT89C2051. With microphone and audio input of the amplifier, adjustable input level. Transmitting power can switch between 1W and 7W.
(How to switch? -Press and hold the power switch button then plug in the power,
when the LCD display L or H, then release the power button.
By the buttons + and - to switch the transmitter power.).
Specification:
FM Transmitter Frequencies:87-108Mhz
Tuning Step: 100Khz/0.1Mhz
Power Supply:12V DC (The current load of power supply should over 2A)
Stability of Frequency: ±0ppm(-10℃~+50℃)
Frequency Response: 76 ~ 108Mhz
Signal to Noise Ratio: >70dB
Distortion: < 0.5%
Operation Time: True 24/7
Antenna Design:Metal telescoping antenna
Antenna Connector:TNC type
Output Impedance:50 ohm
RF output power: 1W/7W (Power can be switched)
WHne you are in the high Power the Output the power generally 5-7W
Audio Input Connector:3.5mm
Mic Input Connector:3.5mm
Antenna type: TNC telescopic antenna IS-01
Tuning Design:Stable PLL Technology
Transmission Signal:FM Stereo
Size:160mm*95mm*54mm
Package:
-CZH FM Transmitter *1
-Professional antenna *1
-Power supply *1
-Power cord *1
-Audio cable *1
-English manual *1
cze-7c crust is made of high-quality aluminum, which also is the heating panel of power amplifier RD06HVF1, with blue backlight LCD to display five digits of frequency. Motherboard is applied with chip BH1415F, which is the new-generation integrated NC FM stereo radio chip by ROHM, built-in limiter and low pass filter circuit. Make sound more sweet. Control board is designed with high performance MCU STC series, its performance is better than AT89C2051. With microphone and audio input of the amplifier, adjustable input level. Transmitting power can switch between 1W and 7W.
(How to switch? -Press and hold the power switch button then plug in the power,
when the LCD display L or H, then release the power button.
By the buttons + and - to switch the transmitter power.).
Specification:
FM Transmitter Frequencies:87-108Mhz
Tuning Step: 100Khz/0.1Mhz
Power Supply:12V DC (The current load of power supply should over 2A)
Stability of Frequency: ±0ppm(-10℃~+50℃)
Frequency Response: 76 ~ 108Mhz
Signal to Noise Ratio: >70dB
Distortion: < 0.5%
Operation Time: True 24/7
Antenna Design:Metal telescoping antenna
Antenna Connector:TNC type
Output Impedance:50 ohm
RF output power: 1W/7W (Power can be switched)
WHne you are in the high Power the Output the power generally 5-7W
Audio Input Connector:3.5mm
Mic Input Connector:3.5mm
Antenna type: TNC telescopic antenna IS-01
Tuning Design:Stable PLL Technology
Transmission Signal:FM Stereo
Size:160mm*95mm*54mm
Package:
-CZH FM Transmitter *1
-Professional antenna *1
-Power supply *1
-Power cord *1
-Audio cable *1
-English manual *1
Price will be lower
in next 2 weeks
in next 2 weeks
According to the data, price will be lower in next two weeks, so not waste your money and track better price!
Product review & video
hello I just like to show you my setup of the Caesar e7c FM transmitter now this is not a bad little unit actually for the price that you pay for it pretty compact and well it works reasonably well you see on the front here we have a dial here this is the microphone in volume and this dial here is the audio out transmitting volume and that needs to be kept well I find just below halfway is ideal if you go anyhow you get Distortion the lights off on the front you've got a audio input so you can input any audio from any source really power switch and up and down and a microphone socket I don't use the microphone well there's nothing really it's just a power switch and power cord in fun vents and antennae sake that's a dipole set up with it which I'll show you in a minute the original comes with this little well it's just it does work but there's no distance on it really when you've got it
