Description
Model Number: HUNSN WD09
Screen Size: 14 Inch 2MM Embedded Panel PC
Opening Hole Size: 340.3mm (length) *225.3mm (width)
Material: Aluminum alloy / sheet metal
Screen Type: 10 Points Capacitive Touch Screen
CPU: Intel Core I5 Gen. 3th CPU (Commonly for I5 3317U, seller remains random ship)
OS: Support Windows 7/8/8.1/10,WES7/8,Linux, Vxworks etc; (Barebone, Single RAM, Single SSD or SSD+HDD without any system). Others with Windows 7 pro as the default option, and linux ubuntu or Windows 10 pro do needs to leave us message on the order, thank you.
Version: With Fan
RAM/SSD/HDD: Maximum 8G RAM DDR3/L/-RS 1333/1600, 1* MSATA + 1*2.5 Inch HDD
I/O: 2*RS232+HDMI+VGA+LAN+4 USB2.0+DC+Audio In &Out
Physical Dimension: 346.3* 231.3* 42.7mm
Physical Weight: 3KG/3.5KG(Net/Gross)
IP Protection Level: Default IP54 (front panel)
Color: Black
Panel Structure:
Panel Size: 14 Inch LED Screen
Resolution: 1600*900
Display Brightness: 250cd/m(2)
Contrast: 500 : 1
Response Time: 8ms
Touch Type: Capacitance 10 point touch> 50 million times
Usage Environment:
Working Temperature: 0°C~50°C Surface air flow
Operating Humidity: 10%~95% at 40°C No condensation
Storage Temperature: -10 ℃ ~ 60 ℃
Installation Method:
1: Embedded (Recommended)
2: Wall-mounted
3: Desktop
4: Cantilevered
5: Others
Network: 1* Realtek 8111E Gigabit
Audio: ALC662
Package Size: 38CM(L)*30CM(W)*12.5CM(H)
Package Weight: 6KGS
Power Supply: Input:180-240V~1.0A 50-60Hz,Output:12V DC 4A MAX
Power Cord: Power Cord*1
Buckle: Embedded Installation Buckle*4 Sets
Screen Size: 14 Inch 2MM Embedded Panel PC
Opening Hole Size: 340.3mm (length) *225.3mm (width)
Material: Aluminum alloy / sheet metal
Screen Type: 10 Points Capacitive Touch Screen
CPU: Intel Core I5 Gen. 3th CPU (Commonly for I5 3317U, seller remains random ship)
OS: Support Windows 7/8/8.1/10,WES7/8,Linux, Vxworks etc; (Barebone, Single RAM, Single SSD or SSD+HDD without any system). Others with Windows 7 pro as the default option, and linux ubuntu or Windows 10 pro do needs to leave us message on the order, thank you.
Version: With Fan
RAM/SSD/HDD: Maximum 8G RAM DDR3/L/-RS 1333/1600, 1* MSATA + 1*2.5 Inch HDD
I/O: 2*RS232+HDMI+VGA+LAN+4 USB2.0+DC+Audio In &Out
Physical Dimension: 346.3* 231.3* 42.7mm
Physical Weight: 3KG/3.5KG(Net/Gross)
IP Protection Level: Default IP54 (front panel)
Color: Black
Panel Structure:
Panel Size: 14 Inch LED Screen
Resolution: 1600*900
Display Brightness: 250cd/m(2)
Contrast: 500 : 1
Response Time: 8ms
Touch Type: Capacitance 10 point touch> 50 million times
Usage Environment:
Working Temperature: 0°C~50°C Surface air flow
Operating Humidity: 10%~95% at 40°C No condensation
Storage Temperature: -10 ℃ ~ 60 ℃
Installation Method:
1: Embedded (Recommended)
2: Wall-mounted
3: Desktop
4: Cantilevered
5: Others
Network: 1* Realtek 8111E Gigabit
Audio: ALC662
Package Size: 38CM(L)*30CM(W)*12.5CM(H)
Package Weight: 6KGS
Power Supply: Input:180-240V~1.0A 50-60Hz,Output:12V DC 4A MAX
Power Cord: Power Cord*1
Buckle: Embedded Installation Buckle*4 Sets

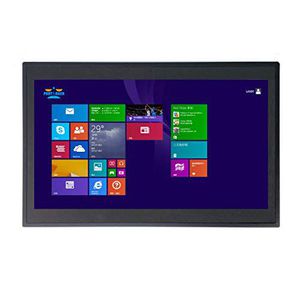

14 Inch 2MM Embedded IP54 Industrial Panel PC,All in One Computer,10 Points Capacitive Touch,Windows 7/10,Linux,Intel Core I5,(Black),[HUNSN WD09],[2RS232/VGA/HDMI/LAN/4USB2],(8G RAM/128G SSD)
Current Price
$680.99
Average
$680.99
Min Price
$680.99
Max Price
$680.99
Description
Model Number: HUNSN WD09
Screen Size: 14 Inch 2MM Embedded Panel PC
Opening Hole Size: 340.3mm (length) *225.3mm (width)
Material: Aluminum alloy / sheet metal
Screen Type: 10 Points Capacitive Touch Screen
CPU: Intel Core I5 Gen. 3th CPU (Commonly for I5 3317U, seller remains random ship)
OS: Support Windows 7/8/8.1/10,WES7/8,Linux, Vxworks etc; (Barebone, Single RAM, Single SSD or SSD+HDD without any system). Others with Windows 7 pro as the default option, and linux ubuntu or Windows 10 pro do needs to leave us message on the order, thank you.
Version: With Fan
RAM/SSD/HDD: Maximum 8G RAM DDR3/L/-RS 1333/1600, 1* MSATA + 1*2.5 Inch HDD
I/O: 2*RS232+HDMI+VGA+LAN+4 USB2.0+DC+Audio In &Out
Physical Dimension: 346.3* 231.3* 42.7mm
Physical Weight: 3KG/3.5KG(Net/Gross)
IP Protection Level: Default IP54 (front panel)
Color: Black
Panel Structure:
Panel Size: 14 Inch LED Screen
Resolution: 1600*900
Display Brightness: 250cd/m(2)
Contrast: 500 : 1
Response Time: 8ms
Touch Type: Capacitance 10 point touch> 50 million times
Usage Environment:
Working Temperature: 0°C~50°C Surface air flow
Operating Humidity: 10%~95% at 40°C No condensation
Storage Temperature: -10 ℃ ~ 60 ℃
Installation Method:
1: Embedded (Recommended)
2: Wall-mounted
3: Desktop
4: Cantilevered
5: Others
Network: 1* Realtek 8111E Gigabit
Audio: ALC662
Package Size: 38CM(L)*30CM(W)*12.5CM(H)
Package Weight: 6KGS
Power Supply: Input:180-240V~1.0A 50-60Hz,Output:12V DC 4A MAX
Power Cord: Power Cord*1
Buckle: Embedded Installation Buckle*4 Sets
Screen Size: 14 Inch 2MM Embedded Panel PC
Opening Hole Size: 340.3mm (length) *225.3mm (width)
Material: Aluminum alloy / sheet metal
Screen Type: 10 Points Capacitive Touch Screen
CPU: Intel Core I5 Gen. 3th CPU (Commonly for I5 3317U, seller remains random ship)
OS: Support Windows 7/8/8.1/10,WES7/8,Linux, Vxworks etc; (Barebone, Single RAM, Single SSD or SSD+HDD without any system). Others with Windows 7 pro as the default option, and linux ubuntu or Windows 10 pro do needs to leave us message on the order, thank you.
Version: With Fan
RAM/SSD/HDD: Maximum 8G RAM DDR3/L/-RS 1333/1600, 1* MSATA + 1*2.5 Inch HDD
I/O: 2*RS232+HDMI+VGA+LAN+4 USB2.0+DC+Audio In &Out
Physical Dimension: 346.3* 231.3* 42.7mm
Physical Weight: 3KG/3.5KG(Net/Gross)
IP Protection Level: Default IP54 (front panel)
Color: Black
Panel Structure:
Panel Size: 14 Inch LED Screen
Resolution: 1600*900
Display Brightness: 250cd/m(2)
Contrast: 500 : 1
Response Time: 8ms
Touch Type: Capacitance 10 point touch> 50 million times
Usage Environment:
Working Temperature: 0°C~50°C Surface air flow
Operating Humidity: 10%~95% at 40°C No condensation
Storage Temperature: -10 ℃ ~ 60 ℃
Installation Method:
1: Embedded (Recommended)
2: Wall-mounted
3: Desktop
4: Cantilevered
5: Others
Network: 1* Realtek 8111E Gigabit
Audio: ALC662
Package Size: 38CM(L)*30CM(W)*12.5CM(H)
Package Weight: 6KGS
Power Supply: Input:180-240V~1.0A 50-60Hz,Output:12V DC 4A MAX
Power Cord: Power Cord*1
Buckle: Embedded Installation Buckle*4 Sets
Price will be lower
in next 2 weeks
in next 2 weeks
According to the data, price will be lower in next two weeks, so not waste your money and track better price!
