Camera
Image Sensor: 1/3" 4Megapixel progressive CMOS
Effective Pixels: 2592(H)x1520(V)
Scanning System: Progressive
Electronic Shutter Speed: Auto/Manual, 1/3(4)~1/10000s Min. Illumination:0.01Lux/F1.4(Color), 0Lux/F1.4(IR on)
S/N Ratio: More than 50dB
Video Output :1 port
Camera Features
Max. IR LEDs Length: 80m
Day/Night: Auto(ICR) / Color / B/W
Backlight Compensation: BLC / HLC / DWDR White Balance Auto/Manual
Gain Control: Auto/Manual
Noise Reduction: 3D
Privacy Masking: Up to 4 areas
Lens
Focal Length: 2.8~12mm
Max Aperture: F1.4
Focus Control: Auto Focus in IE web
Angle of View H: 92°~28°
Mount Type: Board-in Type
Video
Compression: H.265;H.264;H.264H;H.264B;MJPEG
Frame Rate: Main Stream 3M(1~20fps)/1080P/720P(1 ~ 25/30fps)
Sub Stream: D1/CIF(1 ~ 25/30fps)
Bit Rate: H.265: 32K ~ 4156Kbps
Audio
Compression: N/A
Interface: N/A
Network
Ethernet: RJ-45 (10/100Base-T)
Protocol: IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour Compatibility: ONVIF,PSIA,CGI
Max. User Access: 20users
Smart Phone: iPhone, iPad, Android
Auxiliary Interface
Memory Slot: N/A
RS485: N/A
Alarm: N/A
PIR Sensor Range: N/A
General
Power Supply: DC12V, PoE(802.3af)
Power Consumption: Max 8.5W ( Motorized lens: +2W)
Working Environment: -40℃~+60℃
Ingress Protection: IP67
Vandal Resistance: N/A
Dimensions: 72mm×80mm×212.8mm
Weight: 0.75(0.75kg with packaging)

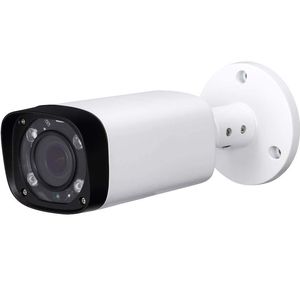

Dahua 4mp Bullet PoE IP Camera IPC-HFW4431R-Z 2.7-13.5mm Lens Motorized Varifocal Indoor Outdoor Network Security Camera
Camera
Image Sensor: 1/3" 4Megapixel progressive CMOS
Effective Pixels: 2592(H)x1520(V)
Scanning System: Progressive
Electronic Shutter Speed: Auto/Manual, 1/3(4)~1/10000s Min. Illumination:0.01Lux/F1.4(Color), 0Lux/F1.4(IR on)
S/N Ratio: More than 50dB
Video Output :1 port
Camera Features
Max. IR LEDs Length: 80m
Day/Night: Auto(ICR) / Color / B/W
Backlight Compensation: BLC / HLC / DWDR White Balance Auto/Manual
Gain Control: Auto/Manual
Noise Reduction: 3D
Privacy Masking: Up to 4 areas
Lens
Focal Length: 2.8~12mm
Max Aperture: F1.4
Focus Control: Auto Focus in IE web
Angle of View H: 92°~28°
Mount Type: Board-in Type
Video
Compression: H.265;H.264;H.264H;H.264B;MJPEG
Frame Rate: Main Stream 3M(1~20fps)/1080P/720P(1 ~ 25/30fps)
Sub Stream: D1/CIF(1 ~ 25/30fps)
Bit Rate: H.265: 32K ~ 4156Kbps
Audio
Compression: N/A
Interface: N/A
Network
Ethernet: RJ-45 (10/100Base-T)
Protocol: IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour Compatibility: ONVIF,PSIA,CGI
Max. User Access: 20users
Smart Phone: iPhone, iPad, Android
Auxiliary Interface
Memory Slot: N/A
RS485: N/A
Alarm: N/A
PIR Sensor Range: N/A
General
Power Supply: DC12V, PoE(802.3af)
Power Consumption: Max 8.5W ( Motorized lens: +2W)
Working Environment: -40℃~+60℃
Ingress Protection: IP67
Vandal Resistance: N/A
Dimensions: 72mm×80mm×212.8mm
Weight: 0.75(0.75kg with packaging)
