Camera
Image Sensor: 1/3" 4Megapixel progressive CMOS
Effective Pixels: 2592(H)x1520(V)
Scanning System:Progressive
Electronic Shutter Speed Auto/Manual, 1/3(4)~1/10000s Min.
Illumination:0.01Lux/F1.4(Color), 0Lux/F1.4(IR on)
S/N Ratio More than 50dB
Video Output :1 port
Camera Features
Max. IR LEDs Length:60m
Day/Night:Auto(ICR) / Color / B/W
Backlight Compensation BLC / HLC / DWDR White Balance Auto/Manual
Gain Control:Auto/Manual
Noise Reduction:3D
Privacy Masking:Up to 4 areas Lens
Focal Length :2.7~12mm
Max Aperture:F1.4
Focus Control:Auto Focus in IE web
Angle of View H: 116°~28°
Mount Type:Board-in Type Video
Compression:H.265;H.264;H.264H;H.264B;MJPEG Frame Rate;
Main Stream :3M(1~20fps)/1080P/720P(1 ~ 25/30fps) Sub
Stream;D1/CIF(1 ~ 25/30fps)
Bit Rate:H.265: 32K ~ 4156Kbps Audio
Compression :N/A
Interface; N/A Network
Ethernet RJ-45 (10/100Base-T)
Protocol IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour Compatibility: ONVIF,PSIA,CGI
Max. User Access :20users
Smart Phone: iPhone, iPad, Android Auxiliary Interface
Memory Slot: N/A
RS485:N/A
PIR Sensor Range:N/A General
Power Supply :DC12V, PoE(802.3af)
Power Consumption:Max 8.5W ( Motorized lens: +2W)
Working Environment:-40℃~+60℃
Ingress Protection: IP67

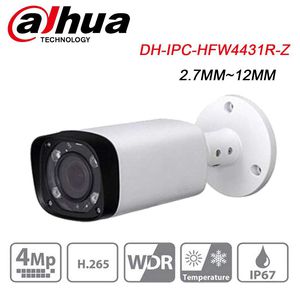

Dahua 4MP IPC-HFW4431R-Z 2.7mm~12mm Varifocal Lens PoE IP Security Camera Bullet Motorized 4X Optical Zoom Super HD 2592x1520 Outdoor Surveillance Camera with 80m IR Smart H.265,ONVIF,Night Vision OEM
Camera
Image Sensor: 1/3" 4Megapixel progressive CMOS
Effective Pixels: 2592(H)x1520(V)
Scanning System:Progressive
Electronic Shutter Speed Auto/Manual, 1/3(4)~1/10000s Min.
Illumination:0.01Lux/F1.4(Color), 0Lux/F1.4(IR on)
S/N Ratio More than 50dB
Video Output :1 port
Camera Features
Max. IR LEDs Length:60m
Day/Night:Auto(ICR) / Color / B/W
Backlight Compensation BLC / HLC / DWDR White Balance Auto/Manual
Gain Control:Auto/Manual
Noise Reduction:3D
Privacy Masking:Up to 4 areas Lens
Focal Length :2.7~12mm
Max Aperture:F1.4
Focus Control:Auto Focus in IE web
Angle of View H: 116°~28°
Mount Type:Board-in Type Video
Compression:H.265;H.264;H.264H;H.264B;MJPEG Frame Rate;
Main Stream :3M(1~20fps)/1080P/720P(1 ~ 25/30fps) Sub
Stream;D1/CIF(1 ~ 25/30fps)
Bit Rate:H.265: 32K ~ 4156Kbps Audio
Compression :N/A
Interface; N/A Network
Ethernet RJ-45 (10/100Base-T)
Protocol IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour Compatibility: ONVIF,PSIA,CGI
Max. User Access :20users
Smart Phone: iPhone, iPad, Android Auxiliary Interface
Memory Slot: N/A
RS485:N/A
PIR Sensor Range:N/A General
Power Supply :DC12V, PoE(802.3af)
Power Consumption:Max 8.5W ( Motorized lens: +2W)
Working Environment:-40℃~+60℃
Ingress Protection: IP67
