Description

Specifications:

Receiver:

Channels: 4

Input Power: DC12V

Standby Current: ≤6mA

Output Current: ≤10A

RF Frequency: 433MHz

Output Power: DC/AC Optional

RF working mode: superheterodyne reception

Coded System: Learning Code (1527 Chip) ; Fixed Code

Receive sensitivity: ≥ -105dbm

Decoding mode: MCU software decoding

Remote control storage: up to 16 PCS

Working mode: Momentary, Toggle, Latching

Wiring type: fixed terminal

Output Terminal: NO , NC , COM

Receiver Board Size: Approx. 7.5 x 5.4 x 2.1cm / (3 x 2.1 x 0.83")

Fuse Box Size: Approx. 7.5 x 5.4 x 2.7cm / (3 x 2.1 x 1.1")

Remote Control:

Frequency: 433MHz

Range: 50m (open area)

Battery: 2*CR2016 3V (included)

Working Current: 10mA

Shock Resistance: 270K/330K

Quantity: 1PCS

Remote Control Size(Each): 5.8*3.2*1.2cm

Package Information:

Package Size: Approx. 17 * 11 * 5cm / 6.7 * 4.3 * 2in

Package Weight: Approx. 94g / 3.3oz

Package List:

1* Receiver Board

1* Fuse Box

1* Remote Control

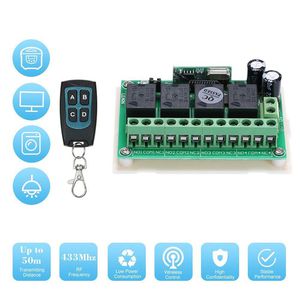

DC 12V 4CH Channel 433Mhz Wireless RF Switch Long Range Wireless Remote Control Switch DC12V RF Relay Receiver Module Transmitter Toggle Switch

Price is below average

Get price

Current Price

$8.46

Average

$10.46

Min Price

$8.46

Max Price

$12.45

Price dynamics

19%

Description

Specifications:

Receiver:

Channels: 4

Input Power: DC12V

Standby Current: ≤6mA

Output Current: ≤10A

RF Frequency: 433MHz

Output Power: DC/AC Optional

RF working mode: superheterodyne reception

Coded System: Learning Code (1527 Chip) ; Fixed Code

Receive sensitivity: ≥ -105dbm

Decoding mode: MCU software decoding

Remote control storage: up to 16 PCS

Working mode: Momentary, Toggle, Latching

Wiring type: fixed terminal

Output Terminal: NO , NC , COM

Receiver Board Size: Approx. 7.5 x 5.4 x 2.1cm / (3 x 2.1 x 0.83")

Fuse Box Size: Approx. 7.5 x 5.4 x 2.7cm / (3 x 2.1 x 1.1")

Remote Control:

Frequency: 433MHz

Range: 50m (open area)

Battery: 2*CR2016 3V (included)

Working Current: 10mA

Shock Resistance: 270K/330K

Quantity: 1PCS

Remote Control Size(Each): 5.8*3.2*1.2cm

Package Information:

Package Size: Approx. 17 * 11 * 5cm / 6.7 * 4.3 * 2in

Package Weight: Approx. 94g / 3.3oz

Package List:

1* Receiver Board

1* Fuse Box

1* Remote Control

According to the data, price will be lower in next two weeks, so not waste your money and track better price!

Product review & video

over the many years of playing with electronics to do various things i found myself in a situation in the studio where i needed to control four of my lights independently my aim was to use a key fob to control the lights this would enable me to switch each and every light on and off from one location without having to move away from where i was filming thankfully this was achievable as i found on amazon a universal 12 volt 4 channel wireless relay remote module now this worked on four through three megs with smart remote controller key fobs i will leave a link in the description below in case anybody else was interested in this module the relay module itself worked on 12 volt there is a total of 14 screw terminals on the relay unit the first two offer ground and 12 volt positive all the rest of the terminals are connections to each of the relays which would be normally open normally clo
