Description

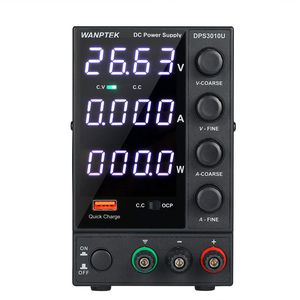

◕‿◕The DPS series products are a three-window four-bit high-precision DC regulated power supply, which can display voltage, current and power at the same time. Power supply stability and ripple coefficient are very good, has two upgraded functions of USB fast charging and perfect short circuit protection. Can be widely used in mobile phone/computer maintenance, school and production line use, etc.
◕‿◕Specifications:
★ Material: Aluminium alloy
★ Model: DPS3010U
★ Output Voltage: 0~30V
★ Output Current: 0~10A
★ Output Power: 300W
★ Auxiliary Output: USB quick charging 18W, supports multiple quick charging protocols
★ Input Voltage: AC230V ± 10%, 50Hz; AC115V ± 10%, 60Hz
★ Working Temperature: 0~40℃; Humidity: <80%RH
★ Storage Temperature: -10~70℃; Humidity: <70%RH
◕‿◕CV:
★ Voltage Stability: ≤0.1% ± 3mV
★ Load Stability: ≤0.1% ± 3mV
★ Ripple Noise: ≤20mVrms (effective value)
◕‿◕CC:
★ Current Stability: ≤0.1% ± 3mA
★ Load Stability: ≤0.2% ± 3mA
★ Ripple Noise: ≤5mArms (effective value)
★ Protection Mode: Current limiting protection/short circuit alarm stop output and self-recovery
★ Display: Four-digit digital tube, three-window display: voltage, current, power
★ Display Accuracy: 0.5% ± 3 digits
★ Display Resolution: voltage 00.01V; current 0.001A
★ Fuse: 3A
★ Item Size: 246 * 90 * 152mm / 9.68 * 3.54 * 5.98in
★ Item Weight: 1571g / 55.42oz
★ Package Weight: 1737g / 61.29oz
★ Package Size: 30 * 20 * 14cm / 11.81 * 7.87 * 5.51in
◕‿◕Package List:
1 * DC Power Supply
1 * Power Cord
1 * Alligator Clip Line
1 * User Manual (English)
◕‿◕Specifications:
★ Material: Aluminium alloy
★ Model: DPS3010U
★ Output Voltage: 0~30V
★ Output Current: 0~10A
★ Output Power: 300W
★ Auxiliary Output: USB quick charging 18W, supports multiple quick charging protocols
★ Input Voltage: AC230V ± 10%, 50Hz; AC115V ± 10%, 60Hz
★ Working Temperature: 0~40℃; Humidity: <80%RH
★ Storage Temperature: -10~70℃; Humidity: <70%RH
◕‿◕CV:
★ Voltage Stability: ≤0.1% ± 3mV
★ Load Stability: ≤0.1% ± 3mV
★ Ripple Noise: ≤20mVrms (effective value)
◕‿◕CC:
★ Current Stability: ≤0.1% ± 3mA
★ Load Stability: ≤0.2% ± 3mA
★ Ripple Noise: ≤5mArms (effective value)
★ Protection Mode: Current limiting protection/short circuit alarm stop output and self-recovery
★ Display: Four-digit digital tube, three-window display: voltage, current, power
★ Display Accuracy: 0.5% ± 3 digits
★ Display Resolution: voltage 00.01V; current 0.001A
★ Fuse: 3A
★ Item Size: 246 * 90 * 152mm / 9.68 * 3.54 * 5.98in
★ Item Weight: 1571g / 55.42oz
★ Package Weight: 1737g / 61.29oz
★ Package Size: 30 * 20 * 14cm / 11.81 * 7.87 * 5.51in
◕‿◕Package List:
1 * DC Power Supply
1 * Power Cord
1 * Alligator Clip Line
1 * User Manual (English)
DC Power Supply, KKmoon DPS3010U 0-30V 0-10A 300W Switching DC Power Supply 4 Digits Display LED High Precision Adjustable Mini Power Supply AC 115V/230V 50/60Hz
Current Price
$88.99
Average
$88.99
Min Price
$88.99
Max Price
$88.99
Description
◕‿◕The DPS series products are a three-window four-bit high-precision DC regulated power supply, which can display voltage, current and power at the same time. Power supply stability and ripple coefficient are very good, has two upgraded functions of USB fast charging and perfect short circuit protection. Can be widely used in mobile phone/computer maintenance, school and production line use, etc.
◕‿◕Specifications:
★ Material: Aluminium alloy
★ Model: DPS3010U
★ Output Voltage: 0~30V
★ Output Current: 0~10A
★ Output Power: 300W
★ Auxiliary Output: USB quick charging 18W, supports multiple quick charging protocols
★ Input Voltage: AC230V ± 10%, 50Hz; AC115V ± 10%, 60Hz
★ Working Temperature: 0~40℃; Humidity: <80%RH
★ Storage Temperature: -10~70℃; Humidity: <70%RH
◕‿◕CV:
★ Voltage Stability: ≤0.1% ± 3mV
★ Load Stability: ≤0.1% ± 3mV
★ Ripple Noise: ≤20mVrms (effective value)
◕‿◕CC:
★ Current Stability: ≤0.1% ± 3mA
★ Load Stability: ≤0.2% ± 3mA
★ Ripple Noise: ≤5mArms (effective value)
★ Protection Mode: Current limiting protection/short circuit alarm stop output and self-recovery
★ Display: Four-digit digital tube, three-window display: voltage, current, power
★ Display Accuracy: 0.5% ± 3 digits
★ Display Resolution: voltage 00.01V; current 0.001A
★ Fuse: 3A
★ Item Size: 246 * 90 * 152mm / 9.68 * 3.54 * 5.98in
★ Item Weight: 1571g / 55.42oz
★ Package Weight: 1737g / 61.29oz
★ Package Size: 30 * 20 * 14cm / 11.81 * 7.87 * 5.51in
◕‿◕Package List:
1 * DC Power Supply
1 * Power Cord
1 * Alligator Clip Line
1 * User Manual (English)
◕‿◕Specifications:
★ Material: Aluminium alloy
★ Model: DPS3010U
★ Output Voltage: 0~30V
★ Output Current: 0~10A
★ Output Power: 300W
★ Auxiliary Output: USB quick charging 18W, supports multiple quick charging protocols
★ Input Voltage: AC230V ± 10%, 50Hz; AC115V ± 10%, 60Hz
★ Working Temperature: 0~40℃; Humidity: <80%RH
★ Storage Temperature: -10~70℃; Humidity: <70%RH
◕‿◕CV:
★ Voltage Stability: ≤0.1% ± 3mV
★ Load Stability: ≤0.1% ± 3mV
★ Ripple Noise: ≤20mVrms (effective value)
◕‿◕CC:
★ Current Stability: ≤0.1% ± 3mA
★ Load Stability: ≤0.2% ± 3mA
★ Ripple Noise: ≤5mArms (effective value)
★ Protection Mode: Current limiting protection/short circuit alarm stop output and self-recovery
★ Display: Four-digit digital tube, three-window display: voltage, current, power
★ Display Accuracy: 0.5% ± 3 digits
★ Display Resolution: voltage 00.01V; current 0.001A
★ Fuse: 3A
★ Item Size: 246 * 90 * 152mm / 9.68 * 3.54 * 5.98in
★ Item Weight: 1571g / 55.42oz
★ Package Weight: 1737g / 61.29oz
★ Package Size: 30 * 20 * 14cm / 11.81 * 7.87 * 5.51in
◕‿◕Package List:
1 * DC Power Supply
1 * Power Cord
1 * Alligator Clip Line
1 * User Manual (English)
