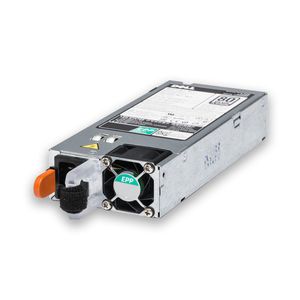

Dell 1100W EPP 80+ Platinum PSU (Y3H8J) (Certified Refurbished)

[Music] so what I found is in order to get this to turn on you need to connect the fourth pin in from the end to the fourth pin in from the end on the other side now once those two are connected you can plug in the unit power it on and you'll see the indicator light go from green to yellow within about four seconds and then to get it to turn on the rest away you need to take the third pin in on the bottom and connect it to the fourth pin in on the bottom or the fourth pin in on the top and then the unit will turn on so what I'm gonna do here is I'm going to a little solder on the fourth pad at the top I'm gonna take some small gauge wire it doesn't have to be anything thick as there was no real current that goes through this close to the fourth [Music] how since I will be adding a switch this inside little project box I'm gonna add two longer pieces of wire [Music] so here we've soldere
