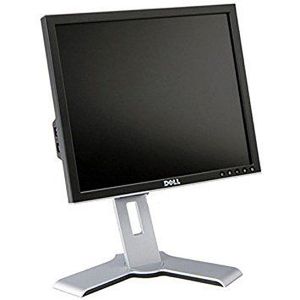

Dell 1908FP 19" flat panel monitor - G438H

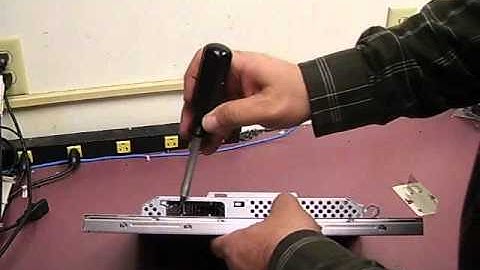

you in this video we will be repairing a Dell e 177 FP 17-inch flat panel monitor this particular unit has a failure in the backlight power supply when you power the ended up all you get is a about two seconds worth of display and then the back lights shut off the unit is still working at that point if you shine a flashlight you will see a faint image but the back lights themselves have shut off that is caused by capacitors in the power supply that are shorting out and shutting the power supply down so today we'll show you how to repair that first thing you need to do is remove the power cable and the VGA signal cable from the unit then remove the unit from the stand press the small button on the back of it unit comes off of the stand gently lay the unit down flat on a surface with a facedown you can remove the four screws that were behind the display stand this takes a standard Phillip
