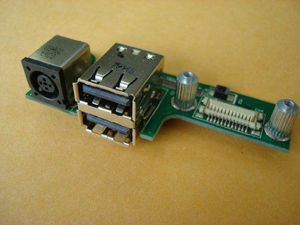

Dell Inspiron 1525 1526 DC Power Jack/USB Board

Parts-People.com - The Dell laptop experts. For this project we'll need a flat head and a phillips screwdriver. Before we start always remove the A/C power and battery. To remove the hard drive, unscrew the 2 hard drive screws that secure the hard drive to the base assembly. Next, remove the optical drive by unscrewing the single retaining screw. Next, use the tip of the screwdriver to slide the optical drive out by pushing on the metal bracket where the screw was. Next, remove the 2 screws that hold the center control power button cover to the base of the computer. Next, unscrew the 8 screws holding the bottom base access cover. Remove the cover starting from right to left. Next, disconnect the antenna wires from the mini wireless cards. Loosen the antenna cables from the base assembly routing channels. Next, loosen the 5 retaining screws on the heatsink. Remove and lift up. Next, remo
