Description

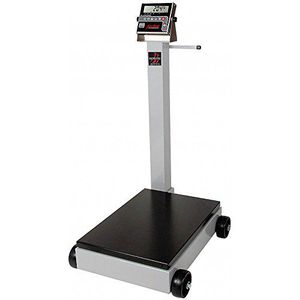

Portable and attractive, these American-made digital portable scales with 5 inch diameter rubolene wheels let the weighing come to you. With a platform size of 19 x 28 inch (48 x 71 cm) and capacities of 500 or 1,000 lbs., there is very little these scales aren't capable of weighing. Models are constructed entirely of heavy-duty welded, fabricated steel with electrostatic paint coating, and are equipped with either a 204 digital weight indicator having push button tare, pounds/kilograms conversion, and RS232 serial output. NTEP legal-for-trade certified. Specifications Capacity : 1,000 lb. x 0.5 lb. (440 kg x 0.2 kg). Platform Size: 19 in x 28 in (483 mm x 711 mm). Wheels: Large 5 inch (127 mm) diameter heavy-duty rubolene. Shipping Weight: 108 lb. / 49 kg. Indicator: Cardinal Model 204; 6 digit, 7 segment LCD 1 in (25 mm) high. Annunciators: Zero, Gross, Tare, Net, Low Battery. Indicator Dimensions: 8 W x 6.625 H x 2.125 D inches (204 W x 168 H x 54 D mm). Indicator Housing: Stainless Steel. Units: Pounds, kilograms, ounces, grams, or pounds/kilograms. Indicator Keyboard: 7 keys. Power: 6. Sample Rate: 1 to 50 samples per second, selectable. Resolution: 1 part in 100,000 displayed, 1 part in 1,000,000 internal. I/O: 1 bidirectional RS232 (20mA) 1 output only RS232 (20mA). Indicator: Cardinal model 210; 6 digit, 7 segment LED 0.6 in (14 mm) high. Annunciators: Zero, gross, tare, net, low battery, stable, lb., oz., kg, g, t, T, PWC-1/under, PWC-2/accept, and PWC-3/over. Indicator Dimensions: 9 W x 7 H x 2.75 D in (229 W x 178 H x 70 D mm). Indicator Housing: IP66 Stainless Steel. Cover, Base and Indicator Mount: Stainless Steel. Units: Pounds, kilograms, ounces, grams, or pounds/kilograms. Indicator Keyboard: 22 keys. Power: 90 to 260 VAC, 50 or 60 Hz and optional camcorder battery CAM-350 type. Sample Rate: 1 to 50 samples per second, selectable. Resolution: 1 part in 100,000 displayed, 1 part in 1,000,000 internal.
