Description

Note: For after installed medias or screens with RCA video input only, it is NOT for orignal Car media directly!You can add camera interface or adapter cable if want to use it with original media.

Applicable to Cars:
For Ford F150 (2004-2014)
For Ford F250 (2008-2014)
For Ford F350 (2008-2014)
For Ford F450 (2008-2014)
For Ford F550 (2008-2014)
Mark LT 2006-2014
Superduty 2008-2015
(The car models are for reference only,please check the camera size and check your truck handle shape. it may fit more cars or can't fit some cars in the list.We have size picture but please allow 0.5-1 inch difference due to manual measurement.)

Technical parameters
Sensor:1/3" PC 1099
Image Sensor
Effective Pixels:976(H) x 496(V)
Resolution:650 TV lines
Lens Angle:170°(D)
Minimum Illumination:0.5 Lux
Exposure Control:
AES(auto electric shutter),1/60 ~ 1/100,000 sec.
White Balance:Auto
Gain Control:Auto
Video Output:1.0Vp-p, 75 Ohm
Working Voltage:DC 9-16V
Power Consumption:100 mA / DC12V
Operation Temperature:-30°C ~ +70°C
Storage Temperature:-40°C ~ +85°C
Waterproof:IP 67
Electronic shutter: NTSC

The product is easy installation and assembly, but Note:
1.This product is a 12V voltage.
2.When installing the product,be sure to use the specified drill,screws,etc. to avoid damage to the camera function
Important: it is not LVDS connectors output to original screen. So the camera don't fit car original screen.

Unique Design:This backup camera is with Guide Line (Yes/No) Switcher. It is with Guide line as default.
Remember to turn off the power before switching
1.If you need a backup camera with distance scale line,you just install it without any operation.
2.If you need a backup camera without distance scale line,please cut the white wire.

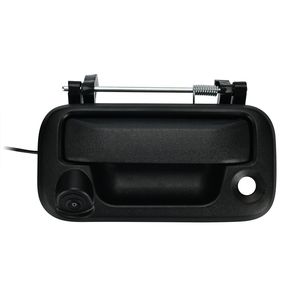

Canying Tailgate Truck Handle Back up Car Rear View Camera for Ford F150/F250/F350/F450/F550

Price is below average

Get price

Current Price

$50

Average

$80.26

Min Price

$50

Max Price

$99.9

Price dynamics

38%

Description

According to the data, price will be lower in next two weeks, so not waste your money and track better price!

Product review & video

it's video which is still uploading to my computer are uploading from my computer I installed an Android head unit into my little sister's truck I didn't have time to install the backup camera but today I do now instead of just going with your basic stick on and drilling backup camera I decided to go with something that looks a little bit more oh yeah because I like making things the OEM in case you haven't noticed now inside here is a tailgate handle off of a valve for a Ford f-150 truthfully I'm not sure if it'll fit but the ford explorer sport trac does share the same tailgate as the flare side f-150 and I've seen people post on the exact same review of the Amazon review of this item that they've been able to get to fit onto a 2004 def 250 as well so what I'm hoping is that Ford uses the same tailgate handle for all their trucks I'm hoping that's the case otherwise I wasted some mone
