Description

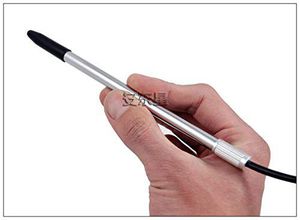

The DIGITAL PEN CAMERA is a new electronic health product for the home.It is a tubular imaging system consisting of an optical lens, an image sensor, an illumination mechanism, and an image transfer control circuit connected to a computer. You can display the images captured by the DIGITAL PEN CAMERA on the computer screen, store them on the computer, print them, or send them over the Internet.
As a USB microscope, it can magnify stamps, coins, antiques, insects, electric circuits, machines, fabrics, food, decorations, etc. and can also help visually impaired patients magnify small text for reading.
For best picture quality, the following specifications are recommended:
1. PC compatible computer
2. Intel Pentium III processor or above
3. 128M RAM or above
4. At least one USB port (For best effect, USB 2.0 port is recommended).
5. Windonws XP,Vista ,Windows 7,Windows 8 32bit or 64bit, Mac OS X 10.5 or above,Linux,if you need use it on Mac OS,please tell us,we will sent software to you.
Technical Specifications
1. DSP: High power Digital Image Monarch Processor.
2. Sensor: high-quality CMOS sensor, 2M pixel(hardware,no Interpolation)
3. Resolution: 640X480,1600 X 1200 (set resolution: menu---options--video capture pin... )
4. Interface: USB1.1/USB2.0.
5. Frame rate: 30 frames/sec (When resolution at 640 X 480),1600 X 1200 5frames /sec
6. Focal distance: 5mm - 30mm (when Focal distance infinity,the microscope as a webcam,can not magnify).
7. Magnification: Please refer to the sample photos and video
8. Diameter: 12mm
9. USB cable Length:about 150cm USB cable color:black or transparent color (random)
10.Lighting:8 X LED around the camera lens
Packaging included
Digital Pen Camera X 1
Specula X 10
software CD x1
