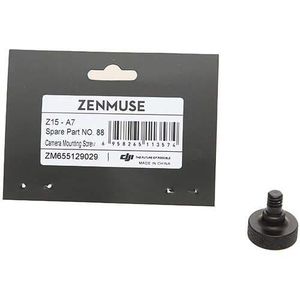

DJI Zenmuse Part 88 Z15-A7 Camera Mounting Screw

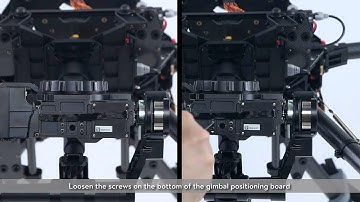

mounting the zenmuse z15 a7 gimbal hello everyone today we are going to show you how to mount the zenmuse z15 a7 gimbal first open the box remove the sticker take out the accessories and take out the gimbal because the landing gear of the s900 comes with dampening units first remove the four dampening units from the gimbal then remove the four dampening boards mount the gimbal to landing gear at the s900 apply threadlocker to the screws before tightening next connect the GC you plug the nine pin and six pin cables into the GCU we suggest you mount the GCU in the reserved position mount the GCU in place stall the receiver mounting board and tighten the bracket connect the GCU to the DJI flight control system using the can bus plug the 8 pin end into the motor signal port plug the 10 pin end into the video signal port power on the GCU mounting a sony a7s next mount the camera here using t
