Description

Features:

- All video files are AVI format. Each camera has a separate video file.
- Built-in quad / Split screen, able to show 4 camera views at one time.
- Although monitor supports 5 cameras input, but DVR only records AV1, AV2, AV3 and AV4 images, it can not record AV5 image.
-The monitor do not build-in speaker as default, if you need it, please contact us.
- All DVR functions are set via the remote control.
- All cameras have one red (or white) wire on the 4pin connector, we send Mirror Image camera as default, if need Non-Mirror Image, please cut the wire. We also change it through the DVR menu.

How to Install the 4 trigger wires:

The power cable of monitor has 4 trigger wires, once trigger wire activated, image automatically switchover to corresponding camera. The power cable of monitor has 6 wires, for example, if the Gray wire has 12 volt, then the monitor will only show one image of V1 camera. The rest can be done in the same manner other trigger wires. So please according to your request to connect those trigger wires to the left light, right light and reversing light. Other, if you want the monitor always shows four image all the time, then those trigger wires need not connect to anything.

Please Kindly Note:

-The monitor included U-bracket as default, Not metal bracket.
-The monitor without speaker and cameras also without audio.
-The item included a few 15m(49ft) cables.
-All camera are black shell.

Package List:

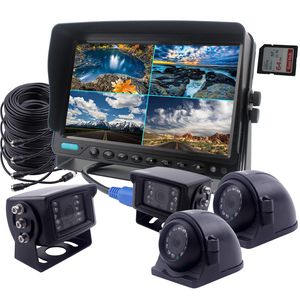

- 9" Monitor x 1
- Heavy Backup Camera x 2
- Heavy Side Camera x 2
- 4PIN 15m Cable x 4

SD Card Is Not Included

If want to know more our products, please visit our store, or search CAMSLEAD on Amazon.

CAMSLEAD Heavy Truck Car Backup Camera System 9" Monitor Built-in DVR Recorder with Quad Split Screen High Hardness & Earthquake-Resistant Side Camera Rear View Camera Monitor Kit for Truck Van Carava

Get price

Current Price

$399.88

Average

$399.88

Min Price

$399.88

Max Price

$399.88

Price dynamics

Description

Features:

How to Install the 4 trigger wires:

Please Kindly Note:

-The monitor included U-bracket as default, Not metal bracket.
-The monitor without speaker and cameras also without audio.
-The item included a few 15m(49ft) cables.
-All camera are black shell.

Package List:

- 9" Monitor x 1
- Heavy Backup Camera x 2
- Heavy Side Camera x 2
- 4PIN 15m Cable x 4

SD Card Is Not Included

If want to know more our products, please visit our store, or search CAMSLEAD on Amazon.

According to the data, price will be lower in next two weeks, so not waste your money and track better price!

Product review & video

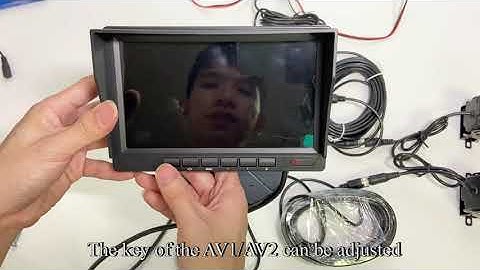

installation video step one first get out of all items from the package [Music] there are monitor camera sunshade pedestal plus 3m cigarette lighter adapter t-taps and screws [Music] first i install the sunshade on the monitor [Music] clasp into the sunshade [Music] use the u bracket to fix the monitor look at my operation we need to use some screws to fix the [Music] bracket the brackets angle can be adjusted like my way with two screws to fix the camera on your car next we take down screws of the monitor try to install fan shape bracket loosen the screws of the bracket [Music] rotate and loosen the screw [Music] clasp into the bracket [Music] tighten the screw [Music] now i take out the 3m to stick [Music] tear off the yellow paper [Music] then stick the 3m in the brackets bottom [Music] then install the bracket on the back of the monitor slide the cube into the back tighten the screw
