Description

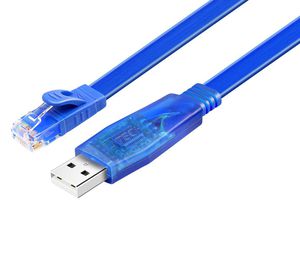

Connect Laptop with USB port Directly to a Cisco Console Port
If your macbook computers don't come with a DB-25 or DB-9 connector, 4 feet USB to RJ45 serial console cable eliminates the need for a RS232 to USB serial adapter, and enables you to make a easy and simple connection between your computer and router/switch. No more hassling with Cisco console adapter paired with RJ45 to USB adapter!
Applications:
Program a router, switch or firewall through console port and your computer does not have a DB9 port;
Reset switch, firewall and router back to factory default with the supported Cisco break sequence;
Configure a PC in your datacenter using multiple USB cable console connections to your critical devices (programming machine,CNC machine, instrument, etc.).
Specific:
Conenctor A: USB type A male
Conenctor B: RJ-45 8 pin modular connector male
Specification: USB 2.0, compatible with USB 1.1 / 1.0
Chipset Inside: FTDI - FT232RL (if can't use the CD, you may download a driver from here - https://www.ftdichip.com/Drivers/VCP.htm) RJ45 connector pinout : 1-CTS, 2-DSR, 3-RXD, 4-GND, 5-GND, 6-TXD, 7-DTR, 8-RTS
Baud rate supported: up to 460800 bps
Supports modem communication signals RTS, DTR, DSR and CTS
Rated operating voltage: DC 5V
Rated operating current: 150mA
To test the cable, you may wire pin 3 and pin 6 with a short conductive wire
What's Included:
1x USB to RJ45 Console Cable
1x CD Driver
1x User's Manual
If your macbook computers don't come with a DB-25 or DB-9 connector, 4 feet USB to RJ45 serial console cable eliminates the need for a RS232 to USB serial adapter, and enables you to make a easy and simple connection between your computer and router/switch. No more hassling with Cisco console adapter paired with RJ45 to USB adapter!
Applications:
Program a router, switch or firewall through console port and your computer does not have a DB9 port;
Reset switch, firewall and router back to factory default with the supported Cisco break sequence;
Configure a PC in your datacenter using multiple USB cable console connections to your critical devices (programming machine,CNC machine, instrument, etc.).
Specific:
Conenctor A: USB type A male
Conenctor B: RJ-45 8 pin modular connector male
Specification: USB 2.0, compatible with USB 1.1 / 1.0
Chipset Inside: FTDI - FT232RL (if can't use the CD, you may download a driver from here - https://www.ftdichip.com/Drivers/VCP.htm) RJ45 connector pinout : 1-CTS, 2-DSR, 3-RXD, 4-GND, 5-GND, 6-TXD, 7-DTR, 8-RTS
Baud rate supported: up to 460800 bps
Supports modem communication signals RTS, DTR, DSR and CTS
Rated operating voltage: DC 5V
Rated operating current: 150mA
To test the cable, you may wire pin 3 and pin 6 with a short conductive wire
What's Included:
1x USB to RJ45 Console Cable
1x CD Driver
1x User's Manual
