Specification:

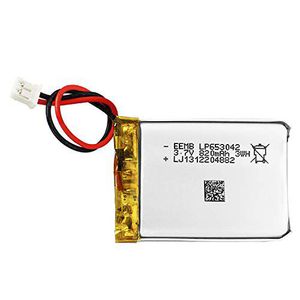

LP653042
Typical capacity: 820mAh, Min capacity: 770mAh
Nominal Voltage: 3.7 V
Weight: 26 g
Maximum Charge Current: 820 mA
Limited Voltage: 4.200±0.020 V
End-of Current: 40 mA
Maximum Discharge Current: 1640mA
Cut-off Voltage: 2.750±0.005 V
Charge Temperature: 0 ~ 45 ℃
Discharge Temperature: -20 ~ +60 ℃
Storage Relative Humidity: 65 ± 20 %
Overcharge Detection Voltage: 4.28± 0.05V
Overdischarge Detection Voltage: 3.0± 0.1V
PCM protection function: over charge, over discharge, over current, short circuit protection, over temperature protection.
APPLICATION:
PSP battery
Phantom 3 standard controller
Home security system
Blue tooth headset battery
Handheld remote
Bluetooth speaker
Kise machine battery
PDA and digital cameras
Tracking devices
Notebook computers
Pulse monitors
Wi-Fi enabled smart home systems
