Description
Lighting Contactor 63 A. 4 Pole Coil 120VAC Normally Open (N.O.) contacts 40 A. Ballast, 32A AC1, 40 A. AC3 IEC 4 Pole 500 VAC Contactors - NO Contacts Energy saving low power drain save 120kwh/year 93 is an electrically held lighting contactor. FEATURES: DIN rail mounting 63 A. Incandescent or resistive load 40 A. Ballast and General purpose Power ON indicator Coil: 12VA inrush, 4VA sealed Normally open (N.O.) contacts IEC AC Rate: AC-1; 20 kW, AC-3; 15 kW @500V Operating Temperature -30...+70 °C (-22...+158 °F) Solid Conductor: 25 mm2 Max torque 0.6 Nm Stranding Conductor: 16 mm2, Max torque 0.6 Nm Electric strength: 4 kV Max switching capacity 600 switch/hr No humming coil, low noise CE approved 61095, Weight: 0.88 lb (0.42 kg)

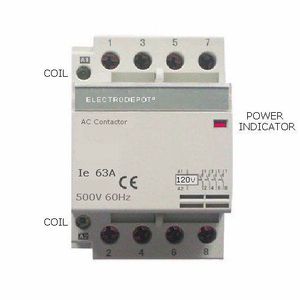

Electrodepot 63Amp NO Contactor 4 Pole, Coil 120VAC Heating or Lighting Designer Modular with Status Indicator
Current Price
$68.99
Average
$67.99
Min Price
$59.99
Max Price
$69.99
Price dynamics
1%
Description
Lighting Contactor 63 A. 4 Pole Coil 120VAC Normally Open (N.O.) contacts 40 A. Ballast, 32A AC1, 40 A. AC3 IEC 4 Pole 500 VAC Contactors - NO Contacts Energy saving low power drain save 120kwh/year 93 is an electrically held lighting contactor. FEATURES: DIN rail mounting 63 A. Incandescent or resistive load 40 A. Ballast and General purpose Power ON indicator Coil: 12VA inrush, 4VA sealed Normally open (N.O.) contacts IEC AC Rate: AC-1; 20 kW, AC-3; 15 kW @500V Operating Temperature -30...+70 °C (-22...+158 °F) Solid Conductor: 25 mm2 Max torque 0.6 Nm Stranding Conductor: 16 mm2, Max torque 0.6 Nm Electric strength: 4 kV Max switching capacity 600 switch/hr No humming coil, low noise CE approved 61095, Weight: 0.88 lb (0.42 kg)
Price will be lower
in next 2 weeks
in next 2 weeks
According to the data, price will be lower in next two weeks, so not waste your money and track better price!
