Description
Description：

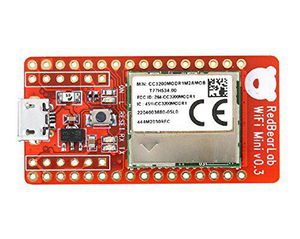

CC3200 WiFi Mini, is based on CC3200 module that is provided by Texas Instruments (TI). The target MCU is TI CC3200, the industry's first single-chip ARM Cortext-M4 core microcontroller unit (MCU) with built-in WiFi connectivity. With on-chip WiFi, Internet, and robust security protocols, no prior WiFi experience is required for faster development. It is offered to make you quickly produce prototypes and demos target for not only Internet of Things (IoT) but also many other exciting and interesting projects, such as WiFi Camera, WiFi Audio, TFTP Client, TCP/IP or UDP Server/Client, Http Server, XMPP Client, mDNS, etc.
Features:
supports most Arduino compatible shields
WiFi Mini has all programmable I/O pins available at a small form factor 48 x 24 x 5mm
Easy jumperless operation, built-in USB interface using Freescale MK20, no jumper change is required when uploading sketch from Energia
The module is Wi-Fi Certified with Modular FCC, IC, and CE Certifications
CC3200 Wi-Fi Consists of Applications Microcontroller, Wi-Fi Network Processor, and Power-Management Subsystems
Applications Microcontroller Subsystem
ARM Cortex-M4 Core at 80 MHz
256KB RAM, 1MB serial flash memory with file system for user
Hardware Crypto Engine for Advanced Fast Security, Including AES, DES, 3DES, SHA2 MD5, CRC and Checksum
Up to 27 individually programmable, multiplexed GPIO pins Wi-Fi Network Processor Subsystem
Dedicated ARM MCU, completely offloads Wi-Fi and Internet Protocols from the Application Microcontroller
802.11 b/g/n Radio
WPA2 Personal and Enterprise Security
Station, Access Point, and Wi-Fi Direct Modes
Powerful Crypto Engine for Fast, Secure Wi-Fi and Internet Connections with 256-Bit AES Encryption for TLS and SSL connections
SmartConfig Technology, AP Mode and WPS2
