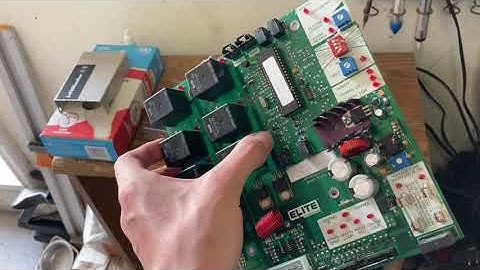

Elite Q222 Miracle 1 Control Board

everyone today we're going to be showing you how to adjust the limits on a elite miracle 1 gate operator so you're going to need to unscrew these two screws in the front and the other two in the back as you can see i've already done that here on this unit so here are the limits these are the limit switches and this is the limit switch adjustment assembly so what you're going to want to do is you're going to want to let's say that the gate is misaligned here and this gate is a little bit in i've already adjusted it so i'm not going to do it again but this gauge is not closing so if these gates are not closing symmetrically what you can do is you can adjust your limits so you're going to open the gate slightly then and you really you need to open the gate slightly so that it doesn't go outside of its limits that would be bad and it's going to get the reverse sensor and you don't want that
