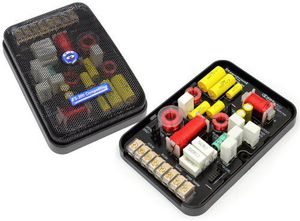

ES-200US - CDT Audio 2-way with UpStage Built-In Design Crossovers

hey guys what's up Eddie I'll hole here with kiss analog calm today we're going to continue on with this 2 8 speaker crossover design we did the woofer in the last video I'm going to review that real quickly and then run do the tweeter and we're gonna then take a look at this design in this one the tweeters done load differently it's not just a single order filter it's a second order filter so then we'll look at this I'll bring that and I'll show you just manikin and the equations in a design book okay alright so let's just jump in this video and start off with the review ok alright so try to put everything here this is a schematic of the - a crossover now this isn't this board this is just a simple - a crossword design okay single order on both the woofer output and the tweeter output okay and this is using 4 ohm speaker drivers okay and so up here I kind of showed the curve you know i
