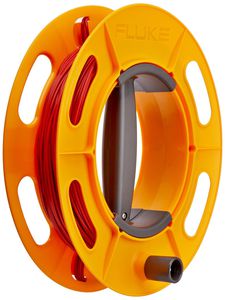

Fluke 4343754 1623-2/1625-2 Ground/Earth Cable Reel, 50 m Wire, Red

[Music] you in the read within more systems today I'll be showing you how to use a fluke 1623 earth ground tester I've already done subliminally setup will see these three connections here the first is connected directed the ground rod is under test the second is connected to a stake was driven to the ground 20 meters from the ground rod the third is connected to a second stake was driven in the ground 40 meters from the ground rod under test we are doing a three pole configuration test you start by turning the selector switch to three pole once the unit powers up it will go through a calibration step once it was calibrated itself we can begin testing you start by simply hitting Start button it'll take his first measurement you'll need to take a total of ten measurements this will give you the effective ground rating of your location article 250 of the NEC states that a ground rod shoul
