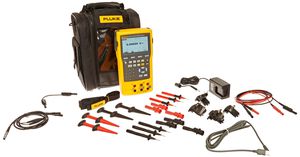

Fluke 754 Documenting Process Calibrator with HART Communication

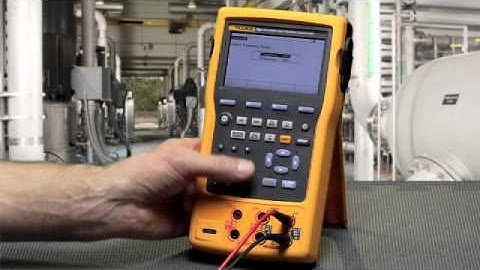

Next, we're going to configure the calibrator to source and measure for various applications. But before we do this, I would like to explain the inputs and outputs to the calibrator. Going from left to right, you have the thermocouple mini connector; where all thermocouples are simulated or measured. You'll notice that there's red writing in the calibrator and black writing. The red writing is for sourcing. Sourcing volts DC and RTDS and sourcing milliamps. Black writing for the measure. Measuring milliamps, resistance, and RTD's. Measuring volts DC and volts AC and the CAT II 300 volt rating then applies to these terminals. To measure a function, first verify that you're in the measure screen with the MEASURE/SOURCE button. To measure milliamps, select MILLIAMPS and make your connection to the input output terminals. measure volts DC, measure volts AC and measure frequency. To measure
